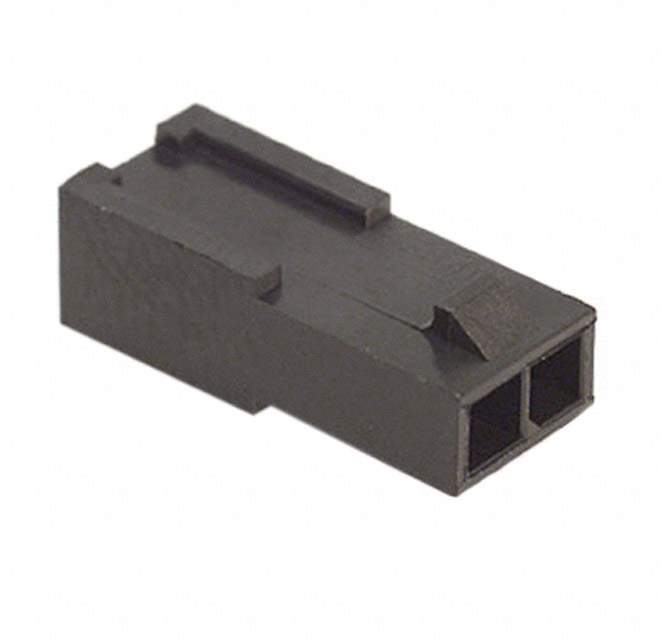

43640-0201 Real Image
Same model may have multiple batches, images only for reference.

43640-0201

Part No 43640-0201
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Micro-Fit 3.0 Plug Housing, Single Row, 2 Circuits, UL 94V-0, Low-Halogen, Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CSA, TUV, UL
Body Material Polyester
Case / Package 0201
Color Black
Connector Type Power, Rectangular
Contact Gender Male
Contact Material Bronze
Contact Plating Nickel
Contact Resistance 10 mΩ
Country of Origin US
Current Rating 2.5 A
Depth 24.53 mm
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Non-compliant
Height 3.86 mm
Housing Color Black
Housing Material Polyester
Lead Free Lead Free
Length 6.85 mm
Material Polyester
Max Operating Temperature 105 °C
Max Voltage Rating (DC) 250.25 kV
Min Operating Temperature -40 °C
Mount Cable, Panel
Number of Contacts 2
Number of Pins 2
Number of Poles 2
Number of Positions 2
Number of Rows 1
Operating Supply Voltage 250 V
Orientation Straight
Packaging Bulk
Pitch 3 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536695050, 8536695050
Termination Crimp
Voltage Rating (AC) 250 V
Voltage Rating (DC) 250 V
Working Voltage 250 V
Win Source Part Number 1116286-43640-0201
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 43640-0201 CAD Model

Description

The Molex, LLC is a circular connector housing that is designed to meet the needs of various applications. Molex, LLC manufactures this connector housing.

  • Packaging: Bulk
  • Mounting: Cable and Panel
  • Number of Positions: 2
  • Pitch: 3 mm
  • Voltage Rating: 250 V
  • Current Rating: 2.5 A
  • Connector Type: Power, Rectangular
  • Contact Material: Bronze
  • Temperature Range: -40°C to 105°C
