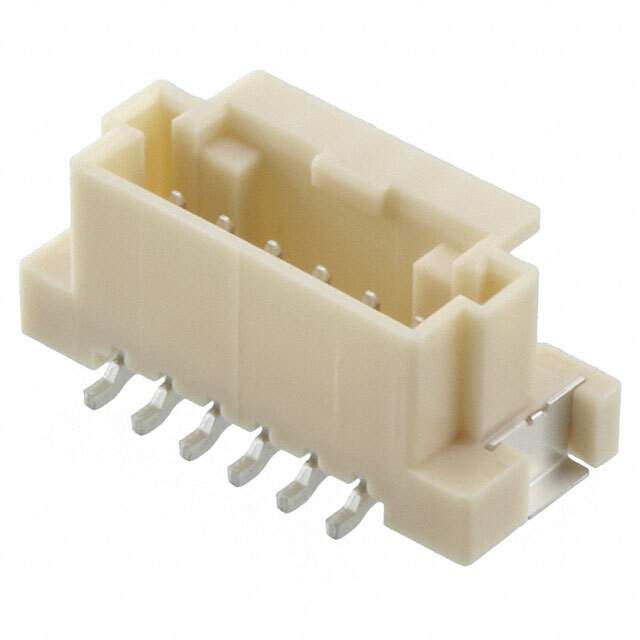

Same model may have multiple batches, images only for reference.

5600200620

Name: 5600200620
Brand: Molex, LLC
SKU: 856578
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5600200620
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 6POS 2MM / Connector Header Surface Mount 6 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Molex, LLC
Series	DuraClik 560020
Package	Tape & Reel
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	6
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Latch Lock
Insulation Height	0.315" (8.00mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA), Nylon
Features	Solder Retention
Insulation Color	Natural
Mated Stacking Heights	9.3mm
Applications	Automotive, Industrial
Base Product Number	560020
Standard Package	650 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	856578-5600200620
Ultra Librarian 3D Model	Ultra Librarian 5600200620 CAD Model

Alternative Products

Description

The DuraClik 560020 is a 6-position male pin header connector from Molex.

Features: Solder Retention
Mounting Type: Surface Mount
Fastening Type: Latch Lock
Contact Material: Copper Alloy
Mating Height: 9.3mm
Applications: Automotive and Industrial
Insulation Material: Polyamide (PA) and Nylon
Pitch: 0.079" (2.00mm)
Mating Contact Finish: Tin
Series: DuraClik
Package: Tape & Reel
Package Quantity: 650 pieces
Product Status: Active
