Same model may have multiple batches, images only for reference.

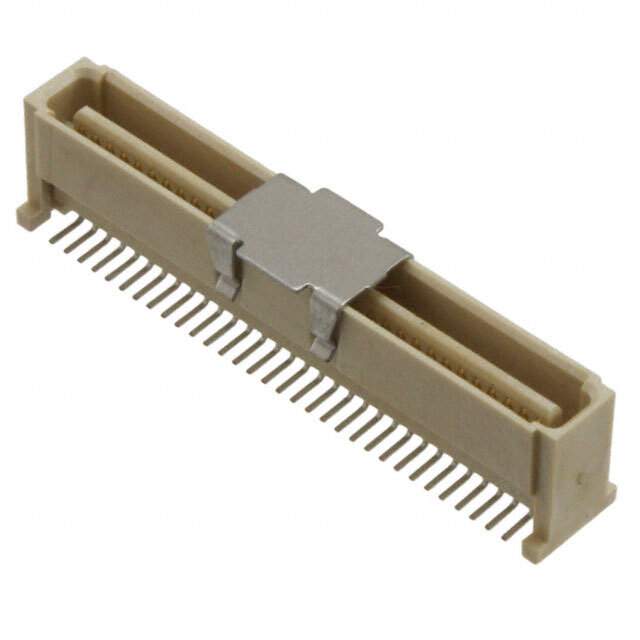

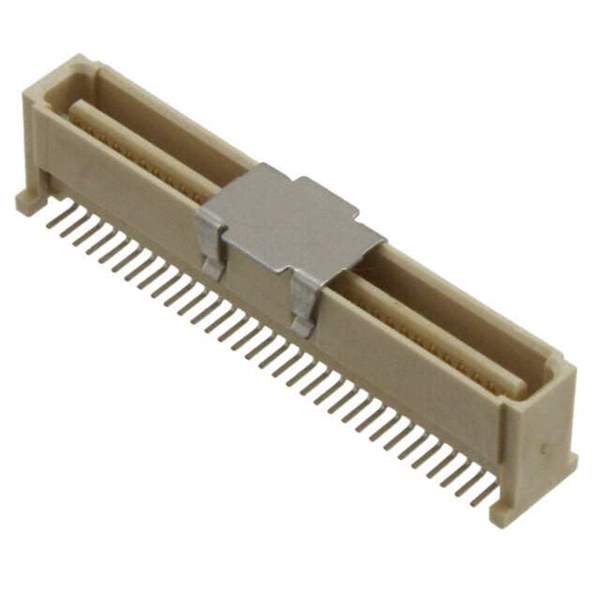

71436-2864 Real Image
Same model may have multiple batches, images only for reference.

71436-2864

Part No 71436-2864
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Board to Board PL 64 POS 1mm Solder ST SMD Embossed T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Natural
Contact Material Bronze
Contact Plating Gold
Contact Resistance 30 mΩ
Country of Origin US
Current Rating 1 A
Depth 6.1 mm
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Housing Color Natural
Housing Material Thermoplastic
Insulation Resistance 1 GΩ
Lead Free Lead Free
Lead Pitch 1 mm
Length 35.9 mm
Max Operating Temperature 85 °C
Max Voltage Rating (AC) 100 V
Min Operating Temperature -55 °C
Mount Surface Mount
Number of Circuits 64
Number of Contacts 64
Number of Positions 64
Number of Rows 2
Orientation Vertical
Pitch 1 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Row Spacing 1.4 mm
Stack Height 8 mm
Termination Solder
Voltage Rating 100 V
Voltage Rating (DC) 100 V
Win Source Part Number 1185492-71436-2864
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 71436-2864 CAD Model

Description

The 1185492-71436-2864 from Molex, LLC is a circular connector housing with 64 contacts.

  • Contacts: 64
  • Pitch: 1 mm
  • Row Spacing: 1.4 mm
  • Termination: solder
  • Contact Material: bronze
  • Contact Plating: gold
  • Housing Material: thermoplastic
  • RoHS Compliance: RoHS compliant
  • Halogen Content: low halogen
  • Applications: automotive, transportation, and industrial equipment
  • Voltage Rating: 100 V
  • Current Rating: 1 A
  • Contact Resistance: 30 mΩ
  • Insulation Resistance: 1 GΩ
  • Lead-Free: yes
  • Flammability Rating: UL94 V-0
