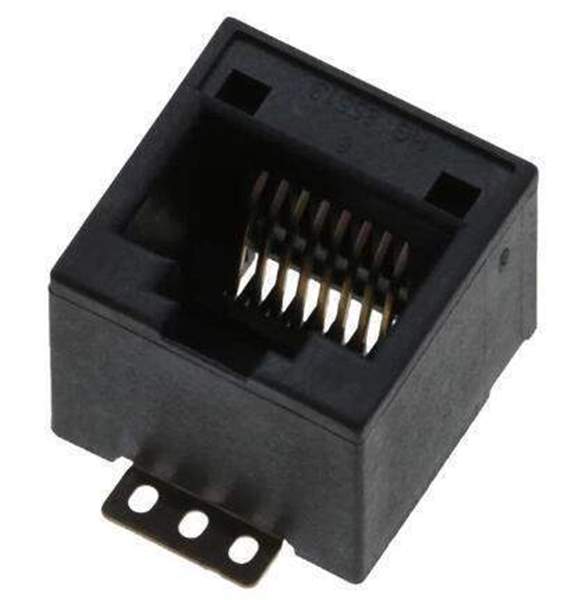

85513-5113 Molex
Same model may have multiple batches, images only for reference.

85513-5113

Part No 85513-5113
Manufacturer Molex, LLC
Catalog Modular Connector Jacks
Description Modular Connectors / Ethernet Connectors JACK T/ENTRY SHORT TRUE SMT 8/8 P&P
Datasheet
85513-5113 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Category Modular Connectors / Ethernet Connectors
Product Connectors
Type Modular
Gender Jack (Female)
USOC Codes RJ45
Configuration 1x1
Number of Positions / Contacts per Port 8P8C
Shielding Unshielded
Performance Category Cat 3
Ultra Librarian 3D Model Ultra Librarian 85513-5113 CAD Model

Description

Modular Jack, Vertical, Top Entry, Surface Mount, 8/8, Low Profle, Pick-and-Place Polyimide Tape, 13" Reel
