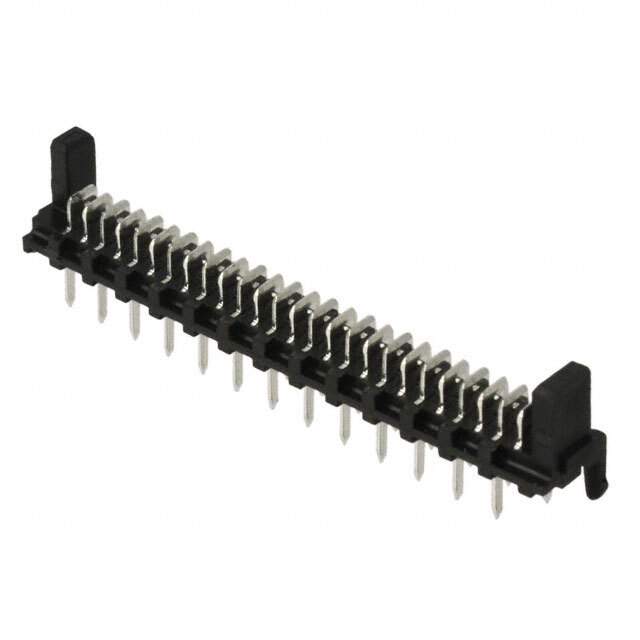

Same model may have multiple batches, images only for reference.

90325-0026

Name: 90325-0026
Brand: Molex, LLC
SKU: 1038068
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	90325-0026
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	Conn IDC Connector PL 28 POS 2.54mm Solder RA Thru-Hole Tray
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Color	Black
Contact Gender	Male
Contact Material	Brass
Contact Plating	Tin
Contact Resistance	15 mΩ
Country of Origin	DE
Current Rating	1.2 A
Flammability Rating	UL94 V-0
Gender	Male
Glow Wire Compliant	Non-compliant
Housing Color	Black
Housing Material	Polyester
Lead Free	Yes
Lead Pitch	1.27 mm
Material	Polyester
Maximum Operating Temperature	105 °C
Min Operating Temperature	-40 °C
Mount	Through Hole
Number of Circuits	26
Number of Contacts	26
Number of Pins	26
Number of Poles	26
Number of Positions	26
Number of Rows	1
Orientation	Vertical
Pitch	1.27 mm
REACH SVHC	Unknown
RoHS	Compliant
Termination	Through Hole
Voltage Rating	250 V
Voltage Rating (AC)	250 V
Voltage Rating (DC)	250 V
Width	31.75 mm
Wire/Cable Gauge	26 AWG
Working Voltage	250 V
Win Source Part Number	1038068-90325-0026
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 90325-0026 CAD Model

Alternative Products

Description

The 1038068-90325-0026 Circular Connector is a high-quality electronic component manufactured by Molex, LLC.

Positions: 26
Color: Black
Pitch: 1.27mm
Rows: Single
Termination: Through-Hole
Contact Material: Brass
Contact Plating: Tin
Housing Material: Polyester
Flammability Rating: UL94 V-0
Voltage Rating: 250V
Current Rating: 1.2A
Contact Resistance: 15 mΩ
Operating Temperature: -40°C to 105°C
RoHS Compliant: Yes
Lead-Free: Yes
