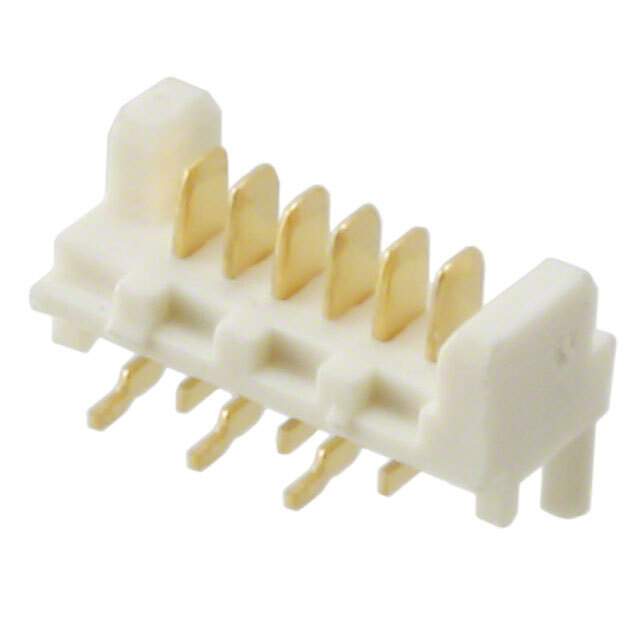

90814-0206 Real Image
Same model may have multiple batches, images only for reference.

90814-0206

Part No 90814-0206
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn High Performance Interconnect HDR 6 POS 1mm Solder ST Top Entry SMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Brass
Contact Plating Tin
Country of Origin SG
Current Rating 1.2 A
Gender Male
Glow Wire Compliant Non-compliant
Housing Material Thermoplastic
Lead Pitch 1.27 mm
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 6
Number of Contacts 6
Number of Positions 6
Number of Rows 1
Orientation Vertical
Packaging Cut Tape
Pitch 1.27 mm
REACH SVHC Unknown
RoHS Compliant
Termination SMD/SMT
Voltage Rating 250 V
Win Source Part Number 998416-90814-0206
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 90814-0206 CAD Model

Description

The Molex, LLC 998416-90814-0206 is a 6-position male circular connector housing designed for use in a wide range of applications, including automotive, industrial control systems, and consumer electronics.

  • Positions: 6
  • Type: Male
  • Shape: Circular
  • Housing Type: Connector Housing
  • Pitch: 1.27mm
  • Current Rating: 1.2A
  • Voltage Rating: 250V
  • Mounting Type: Surface Mount
  • Housing Material: Thermoplastic
  • Orientation: Vertical
  • Suitable for: Portable devices, battery-powered equipment, and industrial control systems.
