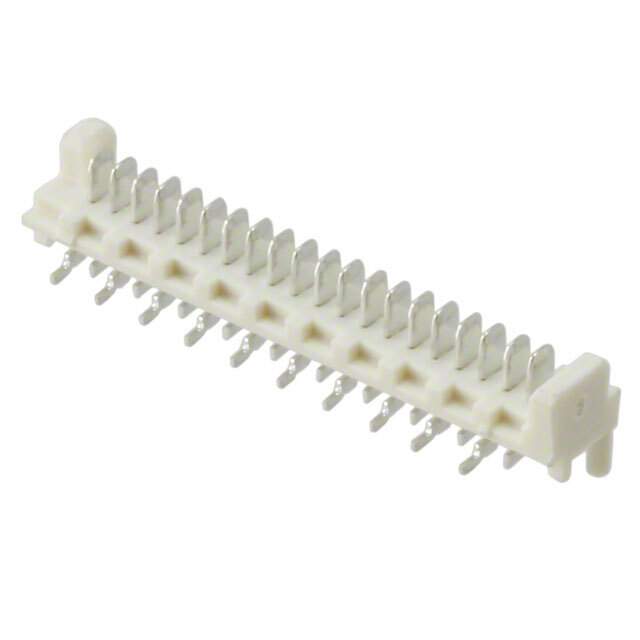

0908140920 Real Image
Same model may have multiple batches, images only for reference.

0908140920

Part No 0908140920
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD 20POS 1.27MM / Connector Header Surface Mount 20 position 0.050" (1.27mm)
Datasheet
0908140920 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Reel - TR
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.050" (1.27mm)
Number of Positions 20
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 2 Wall
Mounting Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.085" (2.15mm)
Insulation Height 0.161" (4.10mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 118.1µin (3.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Board Guide
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1.2A
Voltage Rating 250V
Applications Automotive, General Purpose, Industrial, Medical
Base Product Number 090814
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM3966TR,WM3966CT,908140920,90814-0920,WM3966DKR
Standard Package 600
Win Source Part Number 1333011-0908140920
Ultra Librarian 3D Model Ultra Librarian 0908140920 CAD Model

Description

The Molex 1333011-0908140920 is a 20-position male blade header connector with a push-pull fastening type.

  • Voltage Rating: 250V
  • Material: Brass
  • Plating: Tin
  • Application: Board-to-Cable/Wire
  • Pitch: 0.050" (1.27mm)
  • Contact Finish - Mating: Tin
  • Contact Finish Thickness: 118.1µin (3.00µm)
  • Insulation Material: Polyamide (PA), Nylon, Glass Filled
  • Insulation Color: Natural
  • Shrouded: 2 Walls
  • Overall Contact Length: 0.085" (2.15mm)
  • Suitable For: Automotive, General Purpose, Industrial, and Medical applications
  • RoHS3 Compliant: Yes
  • Material Flammability Rating: UL94 V-0
