Same model may have multiple batches, images only for reference.

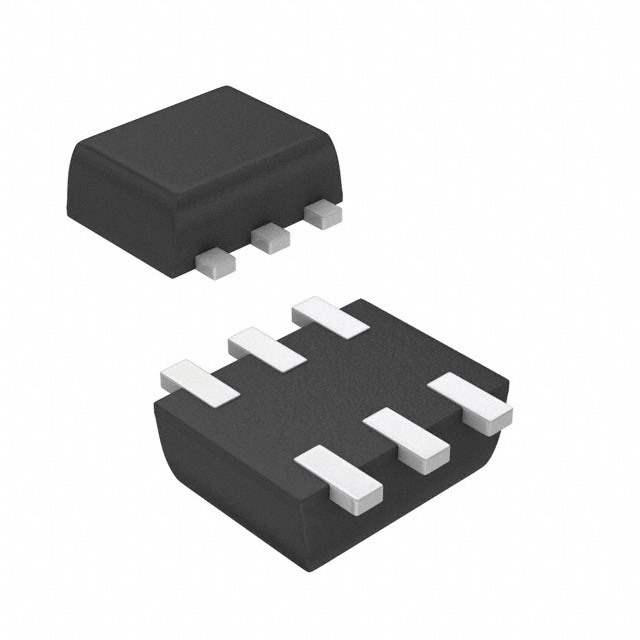

MP5075LGTF-Z Real Image
Same model may have multiple batches, images only for reference.

MP5075LGTF-Z

Part No MP5075LGTF-Z
Manufacturer Monolithic Power Systems Inc.
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC PWR SWITCH P-CHAN 1:1 SOT563
Datasheet
MP5075LGTF-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Power Distribution Switches, Load Drivers
Mfr Monolithic Power Systems Inc.
Package Tape & Reel
Product Status Active
Switch Type General Purpose
Number of Outputs 1
Output Configuration High Side
Output Type P-Channel
Interface On/Off
Voltage - Load 3V ~ 5.5V
Voltage - Supply (Vcc/Vdd) 3V ~ 5.5V
Current - Output (Max) 1A
Rds On (Typ) 80mOhm
Features Load Discharge, Power Good, Slew Rate Controlled
Fault Protection Over Current, Over Temperature, Short Circuit, UVLO
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Supplier Device Package SOT-563
Package / Case SOT-563, SOT-666
Base Product Number MP5075
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 844891-MP5075LGTF-Z
Ultra Librarian 3D Model Ultra Librarian MP5075LGTF-Z CAD Model

Description

The MP5075LGTF-Z is a power distribution switch and load driver integrated circuit.

  • Features: Load Discharge, Power Good, Slew Rate Control
  • Application: General Purpose
  • Voltage Supply Range: 3V to 5.5V
  • Maximum Output Current: 1A
  • Fault Protection: Over-Current, Over-Temperature, Short Circuit, Undervoltage Lockout
  • Output Configuration: High-Side
  • Interface Signals: On/Off
  • Package: SOT-563
  • Mounting: Surface Mount Installation
