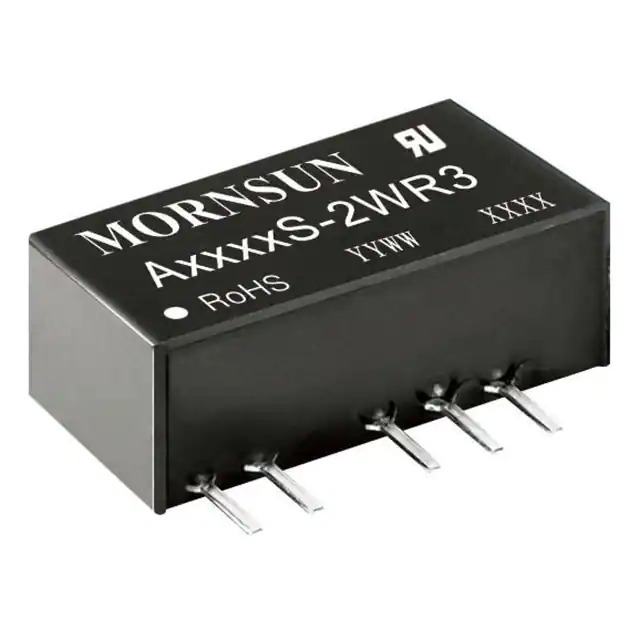

Same model may have multiple batches, images only for reference.

A2405S-2WR3

Get a Quote

Part No	A2405S-2WR3
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 1W
Sample
Rohs State	Need to verify
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Mornsun America, LLC
Series	A_S-2WR3 (2W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	21.6V
Voltage - Input (Max)	26.4V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	200mA, 200mA
Power (Watts)	2 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	-
Temperature Range - Operating	-40°C ~ 105°C (With Derating)
Efficiency	80%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 5 Leads
Size / Dimension	0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
Supplier Device Package	-
Control Features	-
Approval Agency	CB, CE, cURus, UL
Standard Number	62368-1
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1373016-A2405S-2WR3
Ultra Librarian 3D Model	Ultra Librarian A2405S-2WR3 CAD Model

Alternative Products

Description

The Mornsun America, LLC A_S-2WR3 (2W) is a power supply module designed for board mount DC-DC conversion.

Operating Temperature: -40°C to 105°C
Input Voltage: 21.6V to 26.4V
Outputs: 5V and -5V
Maximum Output Current: 200mA
Power: 2W
Efficiency: 80%
Voltage Isolation: 1.5 kV
Approvals: CB, CE, cURus, UL
Package: 7-SIP module with 5 leads
Mounting: Through hole
Dimensions: 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
Application: ITE (Commercial)
