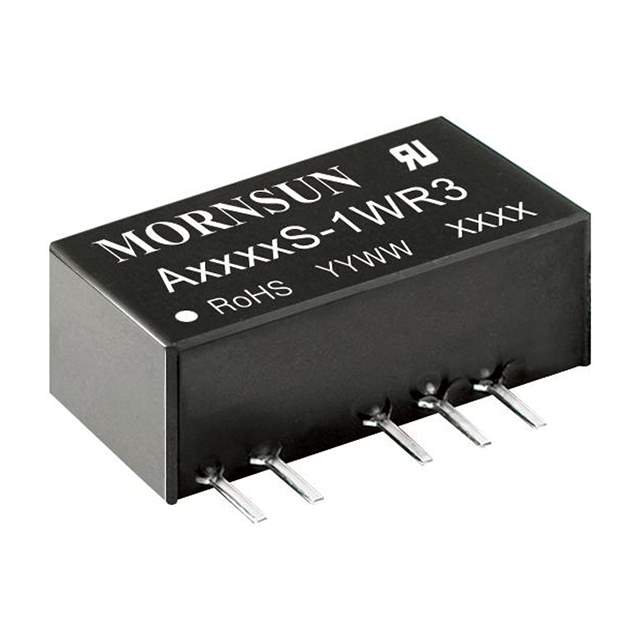

A2424S-1WR3 Real Image
Same model may have multiple batches, images only for reference.

A2424S-1WR3

Part No A2424S-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-24V 1W
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Estimated Pruduction Lead Time 7 Weeks
Features Isolated Module DC DC Converter Output 24V -24V - - 21mA, 21mA 21.6V - 26.4V Input
Manufacturer MORNSUN Science& Technology Ltd.
Series A_S-1WR3 (1W)
Package Tube
Operating Temperature Range -40°C ~ 105°C (With Derating)
Mounting Through Hole
Package 7-SIP Module, 5 Leads
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Quantity per package 25
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 858869-A2424S-1WR3
Ultra Librarian 3D Model Ultra Librarian A2424S-1WR3 CAD Model

Description

The MORNSUN Science& Technology Ltd. A2424S-1WR3 is an isolated module DC DC converter that has an output of 24V -24V - - 21mA, 21mA 21.6V - 26.4V input.

  • GPTDescription: The MORNSUN Science& Technology Ltd. A2424S-1WR3 is an isolated module DC DC converter that has an output of 24V -24V - - 21mA, 21mA 21.6V - 26.4V input. It has an operating temperature range of -40°C ~ 105°C (With Derating) and is packaged in a 7-SIP module, 5 leads. It can be used in various electronic devices that require an isolated module DC DC converter.
