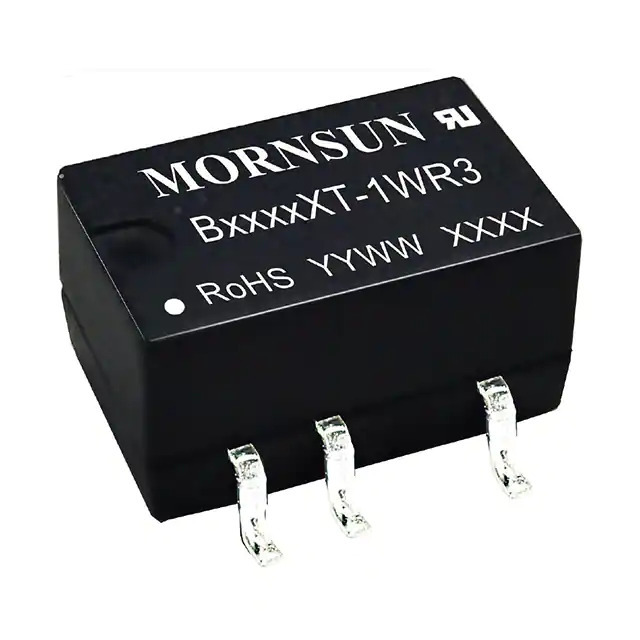

Same model may have multiple batches, images only for reference.
B1205XT-1WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

B1205XT-1WR3

Part No B1205XT-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 10.8V - 13.2V Input
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series B_XT-1WR3 (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 5V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 82%
Mounting Type Surface Mount
Package / Case 8-SMD Module, 5 Leads
Size / Dimension 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm)
Supplier Device Package -
Control Features -
Approval Agency CB, CE, cURus, UL
Standard Number 62368-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1355959-B1205XT-1WR3
Ultra Librarian 3D Model Ultra Librarian B1205XT-1WR3 CAD Model

Description

The 1355959-B1205XT-1WR3 is a power supply DC-DC converter from Mornsun America, LLC.

  • Series: B_XT-1WR3
  • Package: 8-SMD Module, 5 Leads
  • Application: ITE (Commercial)
  • Maximum Output Current: 200mA
  • Power Rating: 1W
  • Input Voltage: 10.8V to 13.2V
  • Output Voltage: 5V
  • Efficiency: 82%
  • Voltage Isolation: 1.5kV
  • Approvals: CB, CE, cURus, and UL
  • Size: 0.52" L x 0.33" W x 0.29" H
  • Operating Temperature: -40°C to 105°C with derating
  • Product Status: Active
  • REACH: Unaffected
