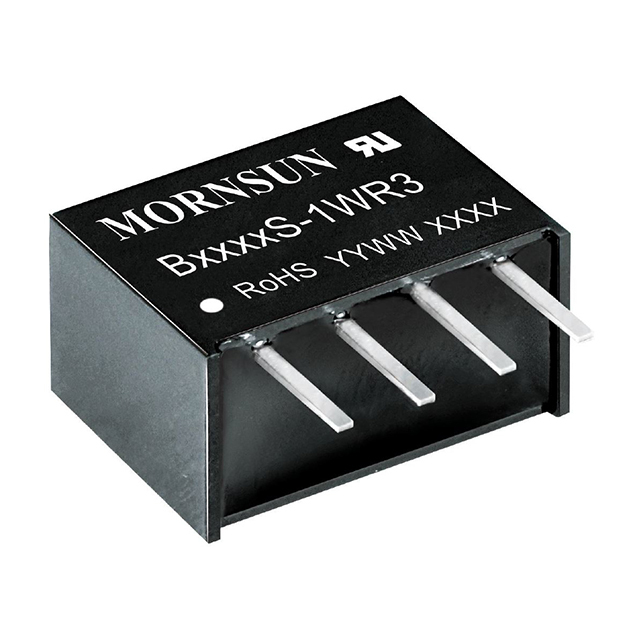

Same model may have multiple batches, images only for reference.
B2424S-1WR3 MORNSUN Science& Technology Ltd. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B2424S-1WR3

Part No B2424S-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 24V 1W
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Package Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 24V
Current - Output (Max) 42mA
Power (Watts) 1 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Operating Temperature -40°C ~ 105°C (With Derating)
Efficiency 81%
Mounting Type Through Hole
Package / Case 4-SIP Module
Size / Dimension 0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm)
Approval Agency CB, CE, cURus, UL
Standard Number 62368-1
Ultra Librarian 3D Model Ultra Librarian B2424S-1WR3 CAD Model

Description

The MORNSUN Science & Technology Ltd. B2424S-1WR3 is a 1W isolated DC-DC converter module that is designed to provide high efficiency and reliable performance.

  • Type: OEM part
  • Application: Widely used in various applications such as ITE (Commercial).
  • Series: B_S-1WR3 (1W) type isolated module.
  • Package: Standard package of 43
  • Voltage Isolation: 1.5 kV.
  • Supply and Demand Status: Currently experiencing a shortage.
  • Alternative part: B2424S-1WR3B2424S1WR3
