Same model may have multiple batches, images only for reference.

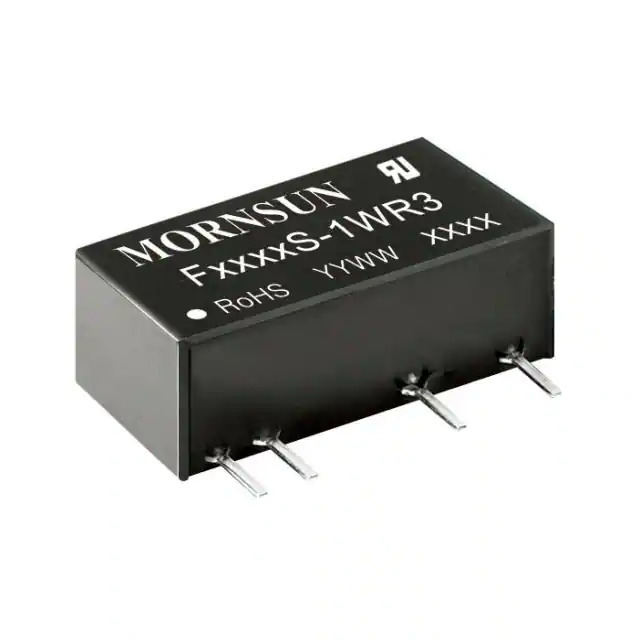

F2409S-1WR3

Get a Quote

Part No	F2409S-1WR3
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 9V 1W
Sample
Rohs State	Need to verify
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Mornsun America, LLC
Series	F_S-1WR3 (1W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	21.6V
Voltage - Input (Max)	26.4V
Voltage - Output 1	9V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	111mA
Power (Watts)	999 mW
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	-
Temperature Range - Operating	-40°C ~ 105°C (With Derating)
Efficiency	80%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 4 Leads
Size / Dimension	0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
Supplier Device Package	-
Control Features	-
Approval Agency	CB, CE, cURus, UL
Standard Number	62368-1
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1373055-F2409S-1WR3
Ultra Librarian 3D Model	Ultra Librarian F2409S-1WR3 CAD Model

Alternative Products

Description

The 1373055-F2409S-1WR3 is a 1W isolated power supply module from Mornsun America, LLC.

Temperature Range: -40°C to 105°C with derating
Package: 7-SIP package with 4 leads
Mounting Style: Through-hole
Maximum Output Current: 111mA
Power Rating: 999mW
Input Voltage Range: 21.6V to 26.4V
Output Voltage: 9V
Voltage Isolation: 3kV
Efficiency: 80%
Application: ITE (Commercial)
Approvals: CB, CE, cURus, and UL
Package Dimensions: 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
Product Status: Active in the F_S-1WR3 series
