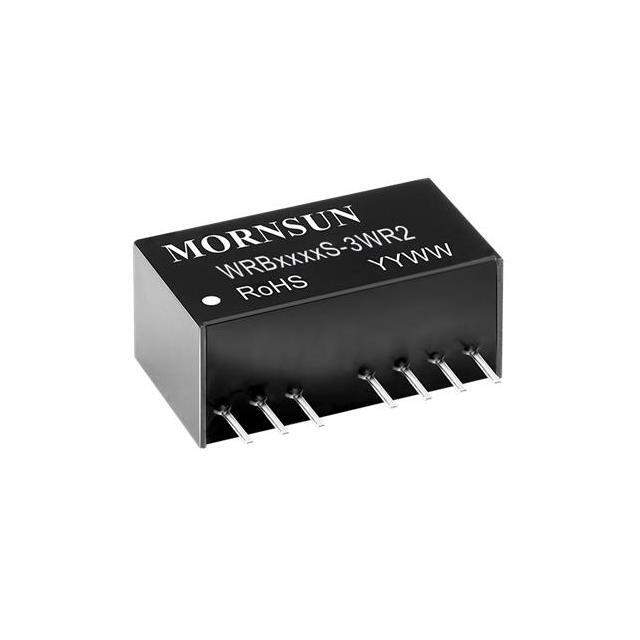

WRB0503S-3WR2 Real Image1 WRB0503S-3WR2 Real Image2
Same model may have multiple batches, images only for reference.
WRB0503S-3WR2 Real Image1 WRB0503S-3WR2 Real Image2
WRB0503S-3WR2 Real Image1 WRB0503S-3WR2 Real Image2
Same model may have multiple batches, images only for reference.

WRB0503S-3WR2

Part No WRB0503S-3WR2
Catalog Power Supplies Board Mount DCDC Converters
Description ISOLATED MODULE DC DC CONVERTER
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series WRB_S-3WR2 (3W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 3.3V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 758mA
Power (Watts) 2.5 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off
Temperature Range - Operating -40°C ~ 85°C
Efficiency 68%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Size / Dimension 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Supplier Device Package -
Control Features -
Approval Agency CE
Standard Number 60950-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372793-WRB0503S-3WR2
Ultra Librarian 3D Model Ultra Librarian WRB0503S-3WR2 CAD Model

Description

The 1372793-WRB0503S-3WR2 is an isolated DC/DC converter from Mornsun America, LLC.

  • Series: WRB_S-3WR2 (3W)
  • Power Rating: 2.5W
  • Mounting Type: Through-Hole
  • Package: 8-SIP Module
  • Leads: 7
  • Input Voltage Range: 4.5 to 9V
  • Output Voltage: 3.3V
  • Maximum Output Current: 758mA
  • Efficiency: 68%
  • Application: ITE (Commercial)
  • Remote On/Off: Yes
  • Approval Agency: CE
  • Size: 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
