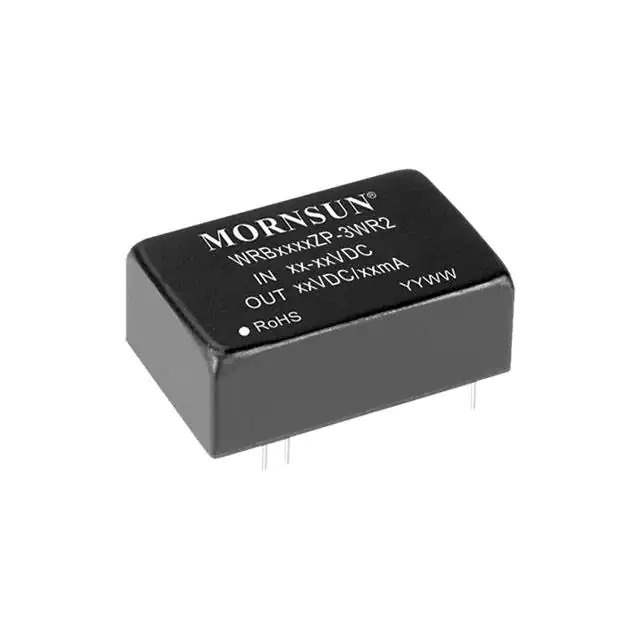

WRB1203ZP-3WR2 Real Image
Same model may have multiple batches, images only for reference.

WRB1203ZP-3WR2

Part No WRB1203ZP-3WR2
Catalog Power Supplies Board Mount DCDC Converters
Description ISOLATED MODULE DC DC CONVERTER
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series WRB_ZP-3WR2 (3W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 3.3V
Current - Output (Max) 909mA
Power (Watts) 2.99 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off
Temperature Range - Operating -40°C ~ 85°C
Efficiency 74%
Mounting Type Through Hole
Package / Case 24-DIP Module, 7 Leads
Size / Dimension 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm)
Approval Agency CE
Standard Number 60950-1; 62368-1
Standard Package 15 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 697835-WRB1203ZP-3WR2
Ultra Librarian 3D Model Ultra Librarian WRB1203ZP-3WR2 CAD Model

Description

The WRB1203ZP-3WR2 is a 3W isolated module DC-DC converter designed for power supply applications in ITE (Commercial) devices. It features a voltage input range of 9V to 18V and provides a single output voltage of 3.3V with a maximum output current of 909mA.

  • Size: 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm)
  • Mounting: Through-Hole
  • Efficiency: 74%
  • Voltage Isolation: 1.5 kV
  • Status: Active
  • Manufacturer: MORNSUN Science & Technology Ltd.
  • Approval: CE
