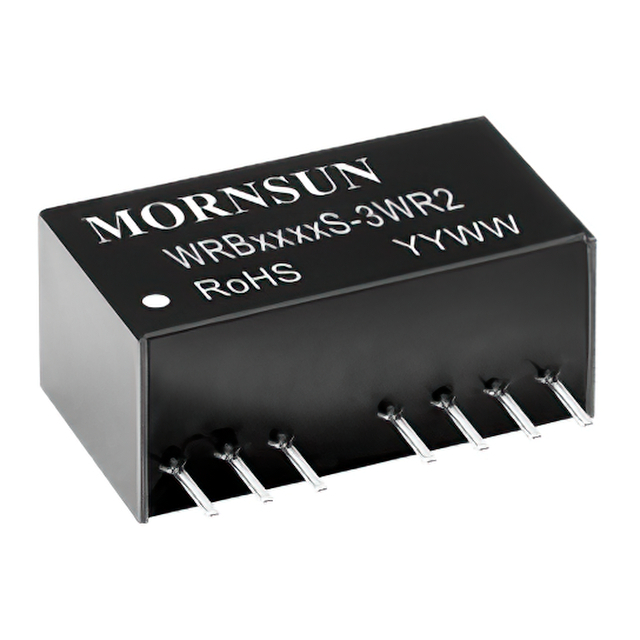

Same model may have multiple batches, images only for reference.
WRB2424S-3WR2 MORNSUN Science& Technology Ltd. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

WRB2424S-3WR2

Part No WRB2424S-3WR2
Catalog Power Supplies Board Mount DCDC Converters
Description ISOLATED MODULE DC DC CONVERTER
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Package Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 24V
Current - Output (Max) 125mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off
Operating Temperature -40°C ~ 85°C (With Derating)
Efficiency 83%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Size / Dimension 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Approval Agency CE
Standard Number 60950-1
Ultra Librarian 3D Model Ultra Librarian WRB2424S-3WR2 CAD Model

Description

The WRB2424S-3WR2 is a 3W isolated module power supply from MORNSUN Science & Technology Ltd..

  • Size: 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
  • Voltage Isolation: 1.5 kV
  • Output Type: Single
  • Maximum Current: 125mA
  • Input Voltage Range: 18V to 36V
  • Output Voltage: 24V
  • Efficiency: 83%
  • Package: 8-SIP module, 7 leads
  • Application: ITE (Commercial)
  • Approvals: CE
  • Standard: 60950-1
