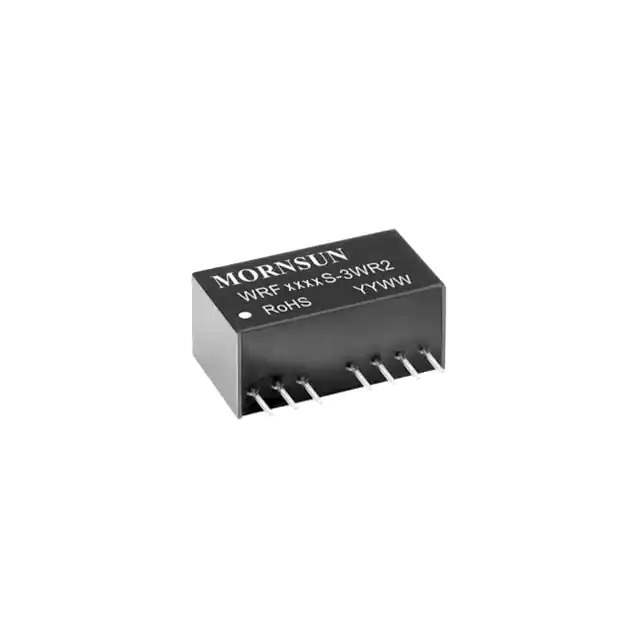

WRF4805S-3WR2 Real Image
Same model may have multiple batches, images only for reference.

WRF4805S-3WR2

Part No WRF4805S-3WR2
Catalog Power Supplies Board Mount DCDC Converters
Description ISOLATED MODULE DC DC CONVERTER
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series WRF_S - 3WR2 (3W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 5V
Current - Output (Max) 600mA
Power (Watts) 3 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features Remote On/Off
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 76%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Size / Dimension 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Approval Agency CE
Standard Number 60950-1
Standard Package 22 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1104831-WRF4805S-3WR2
Ultra Librarian 3D Model Ultra Librarian WRF4805S-3WR2 CAD Model

Description

The WRF_S-3WR2 (3W) is an isolated module DC-DC converter designed for power supplies in the category of power supplies - board mount - DC DC converters.

  • Power Output: 3W
  • Voltage Input Range: 36V to 75V
  • Voltage Output: 5V
  • Feature: Remote On/Off
  • Voltage Isolation: 3 kV
  • Mounting: Through hole
  • Package: 8-SIP module, 7 leads package
  • Operating Temperature: -40°C to 85°C (with derating)
  • Efficiency: 76%
  • Applications: ITE (Commercial)
  • Approval: CE
  • Size: 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
