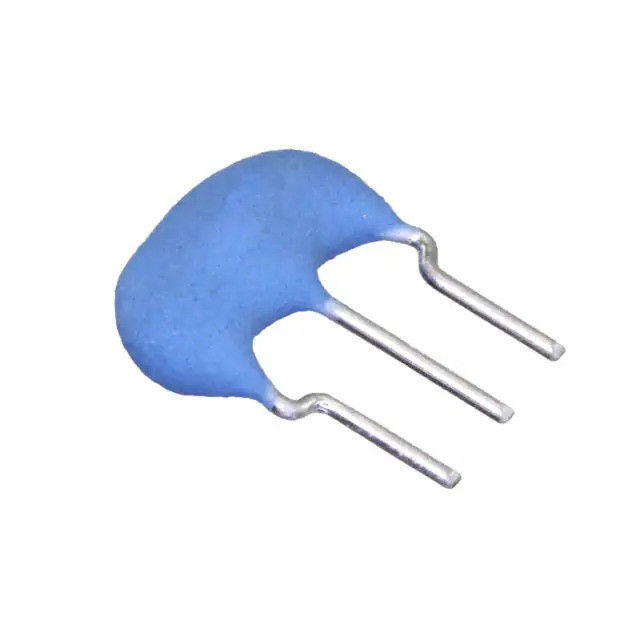

Same model may have multiple batches, images only for reference.
CSTLS4M00G56Z-A0 Murata Electronics North America
Same model may have multiple batches, images only for reference.

CSTLS4M00G56Z-A0

Part No CSTLS4M00G56Z-A0
Manufacturer Murata Electronics North America
Catalog Resonators
Description CERAMIC RES 4.0000MHZ 47PF T/H
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Resonators
Mfr Murata Electronics
Series CERALOCK® CSTLS
Product Status Active
Type Ceramic
Frequency 4 MHz
Frequency Stability -0.4, +0.2%
Frequency Tolerance ±0.5%
Features Built in Capacitor
Capacitance 47 pF
Impedance 30 Ohms
Temperature Range - Operating -20°C ~ 80°C
Mounting Type Through Hole
Package / Case Radial - 3 Lead, 2.50mm Pitch
Size / Dimension 0.315" L x 0.118" W (8.00mm x 3.00mm)
Height 0.236" (6.00mm)
Base Product Number CSTLS
MSL Level Not Applicable
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1366295-CSTLS4M00G56Z-A0
Ultra Librarian 3D Model Ultra Librarian CSTLS4M00G56Z-A0 CAD Model

Description

The CSTLS4M00G56Z-A0 is a ceramic resonator from Murata Electronics.

  • Series: CERALOCK CSTLS
  • Package: Radial - 3 Lead, 2.50mm Pitch
  • Temperature Range: -20°C to 80°C
  • Frequency: 4 MHz
  • Built-in Capacitor: Yes
  • Mounting Type: Through Hole
  • Size: 0.315" L x 0.118" W (8.00mm x 3.00mm)
  • Height: 0.236" (6.00mm)
  • Impedance: 30 Ohms
  • Frequency Tolerance: ±0.5%
  • Polarization: Yes
