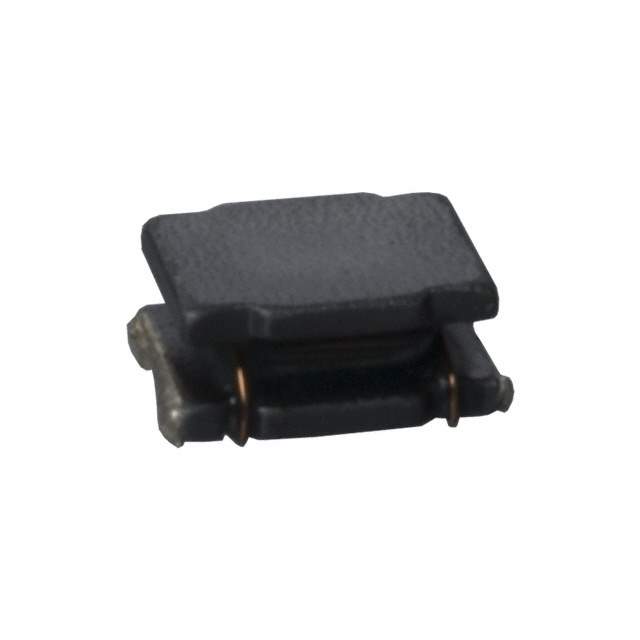

LQH2MCN330K02L Real Image
Same model may have multiple batches, images only for reference.

LQH2MCN330K02L

Part No LQH2MCN330K02L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 33UH 160MA 2.8 OHM SMD
Datasheet
LQH2MCN330K02L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 33μH
Tolerance ±10%
Current Rating 160mA
DC Resistance (DCR) 3.64 Ohm Max
Frequency - Self Resonant 28MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 0806 (2016 Metric)
Height - Seated (Max) 0.037" (0.95mm)
Win Source Part Number 119788-LQH2MCN330K02L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LQH2MCN330K02L CAD Model

Description

The Murata Electronics North America wirewound inductor is an effective solution for applications requiring high inductance and current rating with the following specifications:

  • Inductance: 33u00B5H
  • Current Rating: 160mA
  • Core Material: Ferrite
  • Tolerance: u00B110%
  • DC Resistance (Max): 3.64 Ohm
  • Operating Temperature Range: -40u00B0C to 85u00B0C
  • Height (Seated, Max): 0.037" (0.95mm)
  • Frequency Self-Resonant: 28MHz
  • Frequency Test: 1MHz
  • Packaging: Reel - TR
  • Mounting Technology: SMD (SMT)
  • Category: Inductors, Coils, Chokes
  • Popularity Rating: Medium
  • Supply and Demand Status: Balanced
