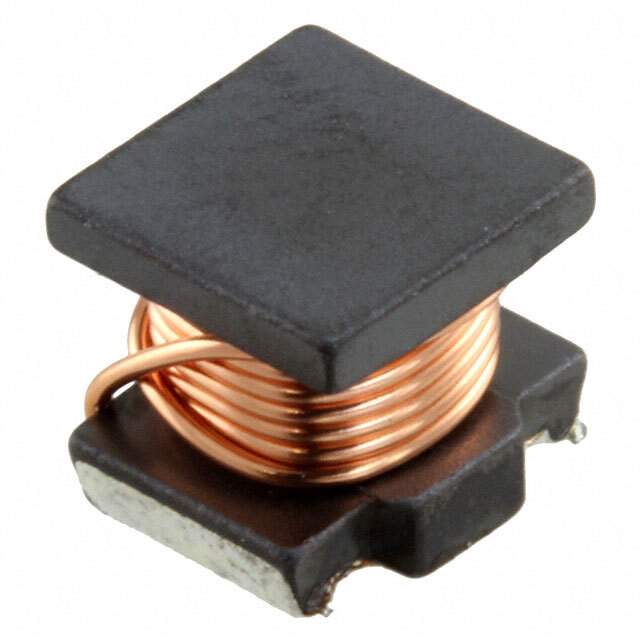

LQH55DN470M03L Real Image
Same model may have multiple batches, images only for reference.

LQH55DN470M03L

Part No LQH55DN470M03L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 47UH 800MA 400 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 47μH
Tolerance ±20%
Current Rating 800mA
DC Resistance (DCR) 560 mOhm Max
Frequency - Self Resonant 10MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.197" (5.00mm)
Win Source Part Number 134667-LQH55DN470M03L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LQH55DN470M03L CAD Model

Description

The Murata Electronics North America LQH55DN470M01L is a wirewound inductor with the following specifications:

  • Current Rating: 800mA
  • Inductance: 47u00B5H
  • Height: 0.197 inches
  • Mounting: SMD (SMT)
  • Tolerance: u00B120%
  • Core Material: Ferrite
  • Self-Resonant Frequency: 10MHz
  • Test Frequency: 1MHz
  • Supply and Demand Status: Balanced
