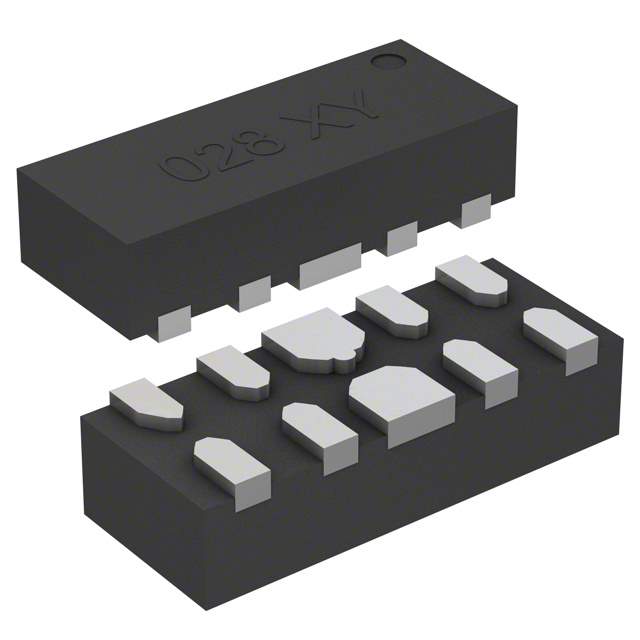

LXES2TBBB4-028 Real Image
Same model may have multiple batches, images only for reference.

LXES2TBBB4-028

Part No LXES2TBBB4-028
Manufacturer Murata Electronics North America
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM SMD
Datasheet
LXES2TBBB4-028 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Obsolete(EOL)
Type Steering (Rail to Rail)
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 5.5V (Max)
Minimum Breakdown Voltage 6V
Power Line Protection Yes
Applications General Purpose
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Win Source Part Number 099459-LXES2TBBB4-028
Ultra Librarian 3D Model Ultra Librarian LXES2TBBB4-028 CAD Model

Description

The Murata Electronics North America 099459-LXES2TBBB4-028 is a steering (rail to rail) circuit protection with 4 unidirectional channels.

  • Applications: Power line protection, general purpose
  • Mounting Type: SMD (SMT)
  • Standoff Voltage (Vwm): 5.5V (Max)
  • Minimum Breakdown Voltage: 6V
  • Operating Temperature Range: -40°C to 85°C (TA)
  • Status: Obsolete (EOL)
