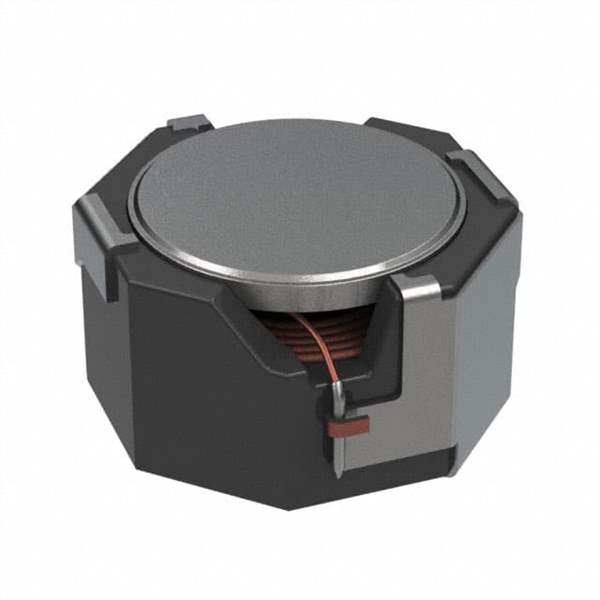

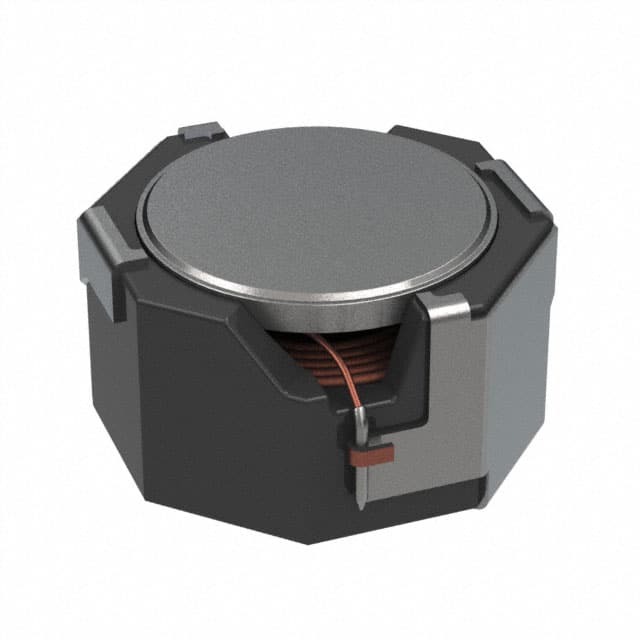

MDH12577C-470MA=P3 Murata Electronics North America
Same model may have multiple batches, images only for reference.

MDH12577C-470MA=P3

Part No MDH12577C-470MA=P3
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 47UH 2.1A 66 MOHM SMD / 47 µH Unshielded Drum Core, Wirewound Inductor 2.1 A 66mOhm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Murata Electronics
Series MDH12577C
Package Tape & Reel
Product Status Not For New Designs
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±20%
Current Rating (Amps) 2.1 A
Current - Saturation (Isat) 3.4A
Shielding Unshielded
DC Resistance (DCR) 66mOhm
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.504" L x 0.492" W (12.80mm x 12.50mm)
Height - Seated (Max) 0.315" (8.00mm)
Base Product Number MDH12577C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 490-17632-6,490-17632-1,490-17632-2
Standard Package 300
Win Source Part Number 1186456-MDH12577C-470MA=P3
Ultra Librarian 3D Model Ultra Librarian MDH12577C-470MA=P3 CAD Model

Description

The MDH12577C-470MA=P3 is a drum core, wirewound inductor from Murata Electronics.

  • Structure: unshielded
  • Package: tape and reel
  • Inductance: 47 µH
  • DC Resistance (DCR): 66mOhm
  • Tolerance: ±20%
  • AEC-Q200: rated
  • Temperature Range: -55°C to 150°C
  • Core Material: ferrite
  • Dimension: 0.504" L x 0.492" W (12.80mm x 12.50mm)
  • Current Rating: 2.1A
  • Inductance Frequency-Test: 100 kHz
  • Alternative Parts: MDH12577C-470MAP3 and MDH12577C470MAP3
