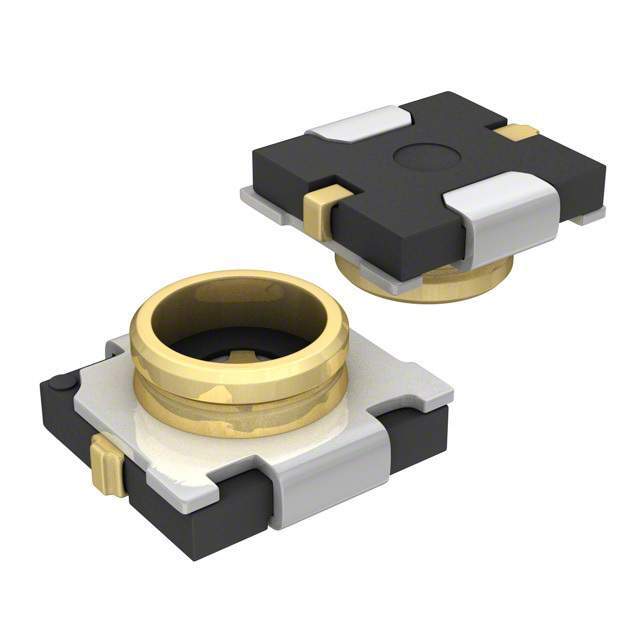

MM8030-2600RJ3 Murata Electronics North America
Same model may have multiple batches, images only for reference.

MM8030-2600RJ3

Part No MM8030-2600RJ3
Manufacturer Murata Electronics North America
Catalog Coaxial Connectors (RF)
Description CONN SWG RCPT STR 50 OHM SMD
Datasheet
MM8030-2600RJ3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Obsolete(EOL)
Connector Style SWG
Connector Type Receptacle, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohm
Mounting SMD (SMT)
Fastening Type Snap-On
Maximum Input Frequency 11GHz
Features Internal Switch
Housing Color Gold
Temperature Range - Operating -40°C to 85°C
Center Voltage Rating 250V
Mating Cycles 100
Insertion Loss 0.5dB
Win Source Part Number 044896-MM8030-2600RJ3
Family Name MM8030
Introduction Date July 15, 1996
ECCN EAR99
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, Communications & Networking, Medical, Industrial
Ultra Librarian 3D Model Ultra Librarian MM8030-2600RJ3 CAD Model

Description

The Murata Electronics MM8030-2600RJ3 connector is a high-popularity device designed for use in computers, computer peripherals, communications and networking, medical, and industrial applications.

  • Device Application: computers, computer peripherals, communications and networking, medical, and industrial applications
  • Internal Switch: Yes
  • Connector Type: receptacle, female socket
  • Fastening Type: snap-on
  • Contact Termination: solder
  • Connector Style: SWG
  • Housing Color: gold
  • Impedance: 50 Ohm
  • Maximum Input Frequency: 11GHz
  • Package: reel-TR
  • Maximum Center Voltage Rating: 250V
  • Mating Cycle: 100
