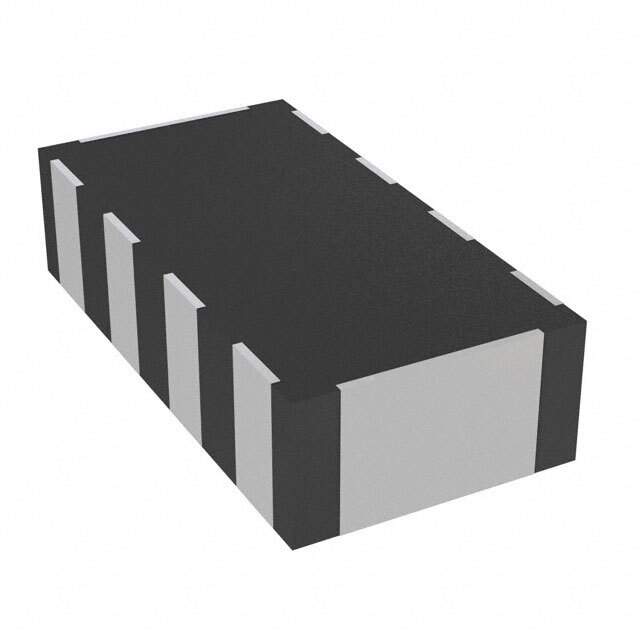

NFA31GD1016R84D Real Image
Same model may have multiple batches, images only for reference.

NFA31GD1016R84D

Part No NFA31GD1016R84D
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC 6.8 OHM/100PF SMD
Datasheet
NFA31GD1016R84D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Murata Electronics North America
Packaging Reel - TR
Type Low Pass
Filter Order 1st
Technology RC
Number of Channels 4
Resistance - Channel (Ohms) 6.8
Current 50mA
Values R = 6.8 Ohms, C = 100pF
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications General Purpose
Voltage Rating 6V
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height 0.039" (1.00mm)
Win Source Part Number 025224-NFA31GD1016R84D
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NFA31GD1016R84D CAD Model

Description

The Murata Electronics North America NFA31GD1016R84D is a low pass filter designed for general-purpose applications.

  • Manufacturer: Murata Electronics North America
  • Application: General-purpose
  • Voltage Rating: 6V
  • Current: 50mA
  • Mounting Type: SMD (SMT)
  • Height: 0.039" (1.00mm)
  • Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
