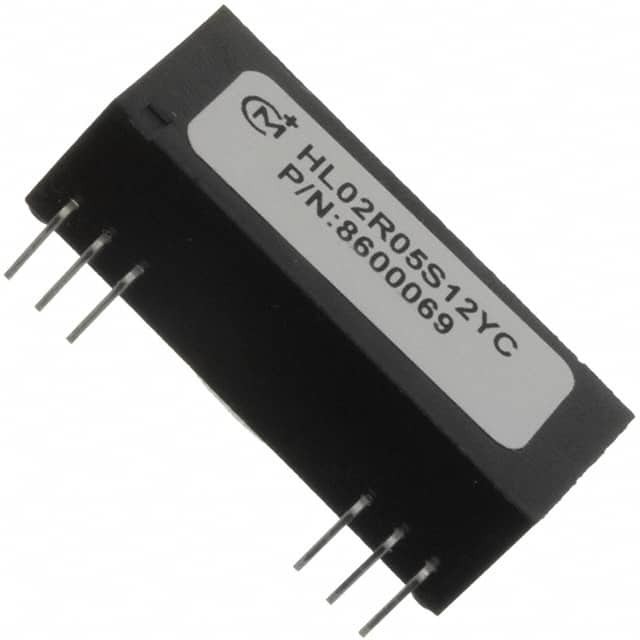

Same model may have multiple batches, images only for reference.

HL02R05S12YC

Name: HL02R05S12YC
Brand: Murata Power Solutions Inc.
SKU: 1017574
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HL02R05S12YC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 2W / Isolated Module DC DC Converter 1 Output 12V 166mA 4.75V - 5.25V Input
Datasheet	HL02R05S12YC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	HL02RYC (2W)
Package	Tube
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.75V
Voltage - Input (Max)	5.25V
Voltage - Output 1	12V
Current - Output (Max)	166mA
Power (Watts)	2 W
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	69%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 12 Leads
Dimension	1.29" L x 0.53" W x 0.38" H (32.8mm x 13.5mm x 9.7mm)
Base Product Number	HL02R05
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	811-1751-5
Standard Package	15
Win Source Part Number	1017574-HL02R05S12YC
Ultra Librarian 3D Model	Ultra Librarian HL02R05S12YC CAD Model

Alternative Products

Description

The HL02RYC (2W) is an isolated module DC-DC converter that can operate in an input voltage range of 4.75V to 5.25V.

Voltage-Isolation: 500V
Maximum Output Current: 166mA
Output Voltage: 12V
Efficiency: 69%
Application: ITE (Commercial)
Mounting: 24-DIP module with 12 leads
Temperature Range: -40°C to 85°C
Dimensions: 1.29" L x 0.53" W x 0.38" H (32.8mm x 13.5mm x 9.7mm)
Manufacturer: Murata Power Solutions Inc.
