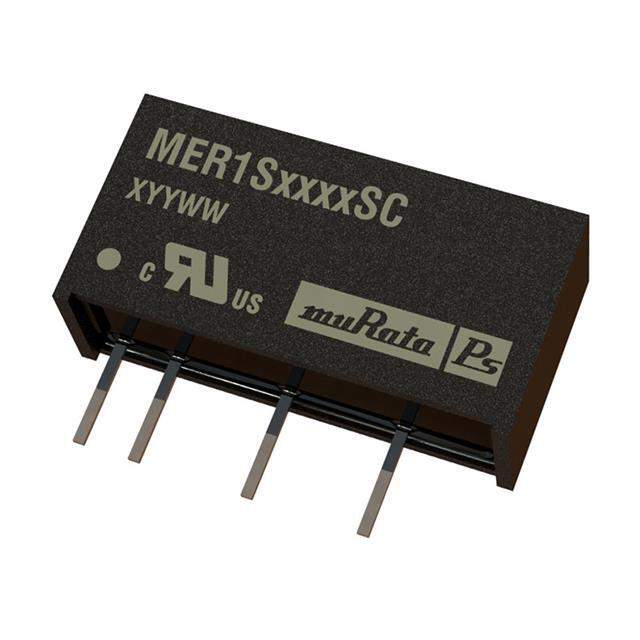

MER1S2415SC Real Image
Same model may have multiple batches, images only for reference.

MER1S2415SC

Part No MER1S2415SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description 1kVDC Isolated 1W Single Output DC/DC Converters
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series MER1
Packaging Tube
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 22.6V
Voltage Input MAX 26.4V
Voltage - Output 1 15V
Current - Output (Maximum) 67mA
Power (Watts) 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Operating Temperature Range -40°C ~ 85°C
Efficiency 87.5%
Mounting Style Through Hole
Package 7-SIP Module, 4 Leads
Size 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm)
Win Source Part Number 1221726-MER1S2415SC
Manufacturer Homepage www.murata-ps.com
Popularity Medium
Supply and Demand Status Limited
Family Name MER1S2415
Introduction Date September 15, 2009
Country of Origin China
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian MER1S2415SC CAD Model

Description

The Murata Power Solutions Inc. MER1S2415SC is a 1W isolated module electronic component. It is packaged in a tube and has a 7-SIP module, 4 leads package. It belongs to the MER1S2415 family and is categorized under power supplies - board mount and manufactured by Murata Power Solutions Inc.

  • Package: Tube
  • Module Package: 7-SIP module, 4 leads
  • Family Name: MER1S2415
  • Category: Power Supplies - Board Mount
  • Introduction Date: September 15, 2009
  • Made in: China
  • Estimated EOL Date: 2024
  • Supply and Demand Status: Limited
