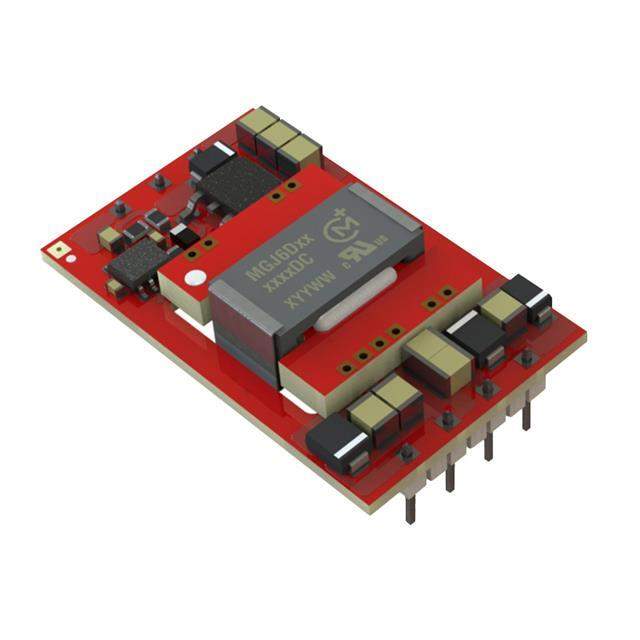

MGJ6D241510DC Real Image
Same model may have multiple batches, images only for reference.

MGJ6D241510DC

Part No MGJ6D241510DC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V -10V 6W / Isolated Module DC DC Converter 2 Output 15V -10V 240mA, 240mA 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series MGJ6 (6W)
Package Tray
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -10V
Current - Output (Max) 240mA, 240mA
Power (Watts) 6 W
Voltage - Isolation 5.2 kV
Applications ITE (Commercial) , Medical
Features SCP, UVLO
Temperature Range - Operating -40°C ~ 105°C
Efficiency 82%
Mounting Type Through Hole
Package / Case 7-DIP Module
Size / Dimension 1.79" L x 1.09" W x 0.39" H (45.5mm x 27.8mm x 9.8mm)
Base Product Number MGJ6D24
Standard Package 30
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1342304-MGJ6D241510DC
Ultra Librarian 3D Model Ultra Librarian MGJ6D241510DC CAD Model

Description

The MGJ6D241510DC is a 6W isolated module DC-DC converter from Murata Power Solutions Inc. Bold text is added to Murata Power Solutions Inc..

  • Power: 6W
  • Application: ITE (Commercial) and Medical
  • Protection Features: SCP and UVLO
  • Packaging: Tray
  • Size: 1.79" L x 1.09" W x 0.39" H (45.5mm x 27.8mm x 9.8mm)
  • Efficiency: 82%
  • Number of Outputs: 2
  • Maximum Current Output: 240mA each
  • Input Voltage: 18V to 36V
  • Output Voltage (Output 1): 15V
  • Output Voltage (Output 2): -10V
  • Voltage Isolation: 5.2 kV
  • Mounting Type: Through Hole
