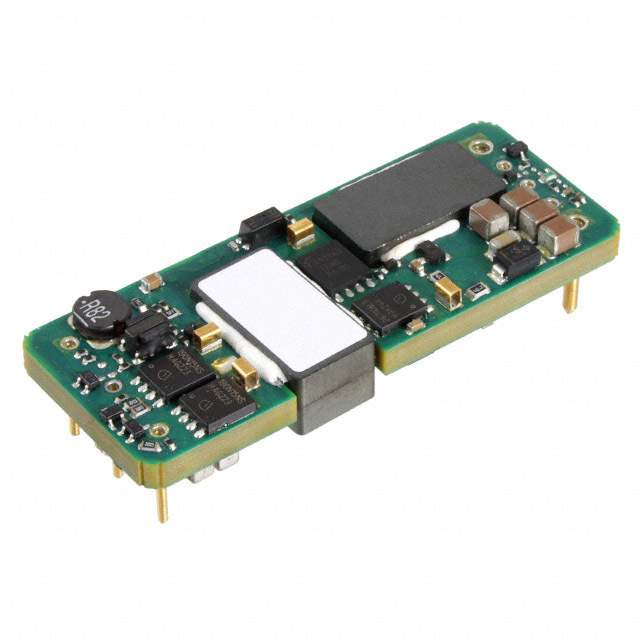

Same model may have multiple batches, images only for reference.

UWE-12/10-Q48N-C

Get a Quote

Part No	UWE-12/10-Q48N-C
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 120W / Isolated Module DC DC Converter 1 Output 12V 10A 18V - 75V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	UWE
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Current - Output (Max)	10A
Power (Watts)	120 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	91.5%
Mounting Type	Through Hole
Package / Case	8-DIP Module, 1/8 Brick
Size / Dimension	2.30" L x 0.90" W x 0.34" H (58.4mm x 22.9mm x 8.6mm)
Control Features	Enable, Active Low
Base Product Number	UWE-12
Standard Package	42
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1337337-UWE-12/10-Q48N-C
Ultra Librarian 3D Model	Ultra Librarian UWE-12/10-Q48N-C CAD Model

Alternative Products

Description

The UWE-12/10-Q48N-C isolated module is a power supply board mount DC DC converter that comes with a remote On/Off feature, along with OCP, OTP, OVP, SCP, UVLO.

Type: Isolated Module
Number of Outputs: 1
Voltage - Input (Min): 18V
Voltage - Input (Max): 75V
Voltage - Output 1: 12V
Current - Output (Max): 10A
Power (Watts): 120W
Applications: ITE (Commercial)
Features: Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Efficiency: 91.5%
Operating Temperature: -40°C ~ 85°C
Mounting Type: Through Hole
Package / Case: 8-DIP Module, 1/8 Brick
Size / Dimension: 2.30" L x 0.90" W x 0.34" H (58.4mm x 22.9mm x 8.6mm)
