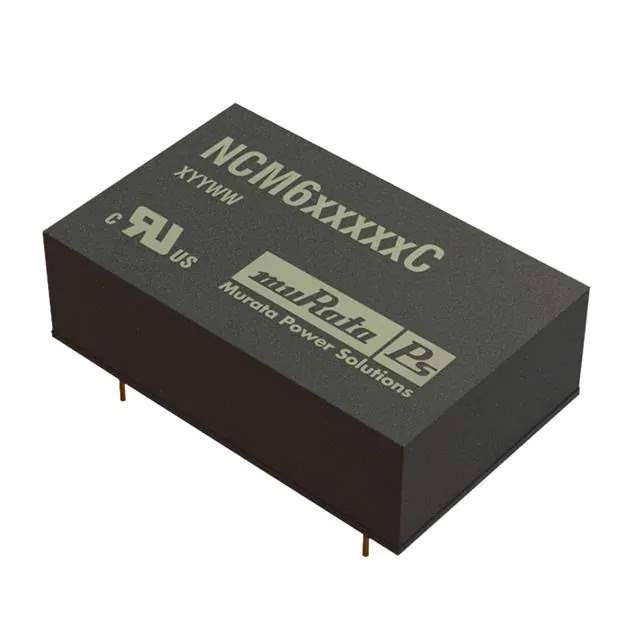

NCM6S1205C Real Image
Same model may have multiple batches, images only for reference.

NCM6S1205C

Part No NCM6S1205C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 6W / Isolated Module DC DC Converter 1 Output 5V 1.2A 9V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NCM6 (6W)
Package Tube
Product Status Last Time Buy
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 1.2A
Power (Watts) 6 W
Voltage - Isolation 5.2 kV
Applications ITE (Commercial), Medical
Features Remote On/Off, OTP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 82%
Mounting Type Through Hole
Package / Case 23-SMD Module, 7 Leads
Size / Dimension 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm)
Control Features Enable, Active Low
Base Product Number NCM6S
Standard Package 15 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 647176-NCM6S1205C
Ultra Librarian 3D Model Ultra Librarian NCM6S1205C CAD Model

Description

The NCM6S1205C is a 6W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Series: NCM6
  • Application: Power supplies in board mount applications
  • Voltage Isolation: 5.2kV
  • Applications: Commercial information technology equipment (ITE) and medical applications
  • Output Voltage: 5V
  • Output Current (Max): 1.2A
  • Input Voltage Range: 9V to 36V
  • Efficiency: 82%
  • Mounting: Through hole
  • Package: 23-SMD
  • Control Features: Remote on/off, OTP, SCP, and UVLO
  • Availability: Last time buy
