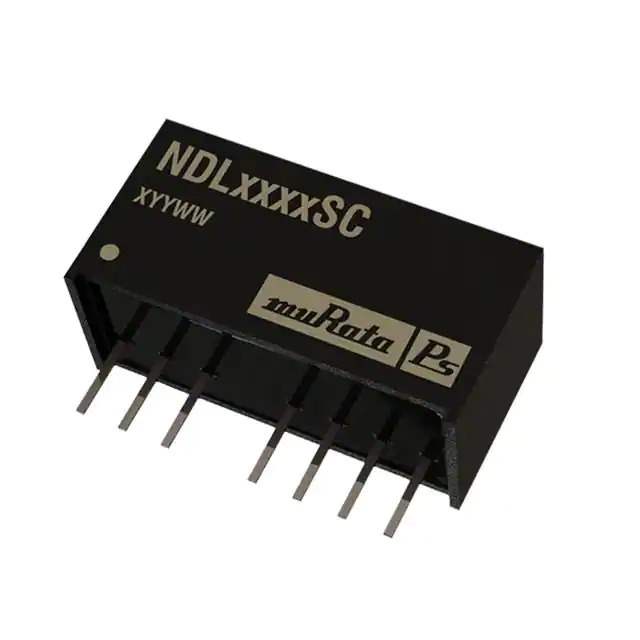

Same model may have multiple batches, images only for reference.

NDL2409SC

Name: NDL2409SC
Brand: Murata Power Solutions Inc.
SKU: 648180
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	NDL2409SC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 9V 2W
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	NDL (2W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	9V
Current - Output (Max)	222mA
Power (Watts)	2 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	81%
Mounting Type	Through Hole
Package / Case	8-SIP Module, 7 Leads
Size / Dimension	0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm)
Base Product Number	NDL24
Standard Package	23 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	648180-NDL2409SC
Ultra Librarian 3D Model	Ultra Librarian NDL2409SC CAD Model

Alternative Products

Description

The 648180-NDL2409SC is a 2W power supply DC-DC converter module manufactured by Murata Power Solutions Inc.

Series: NDL
Module Type: Isolated
Application: ITE (Commercial)
Package Size: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm)
Mounting Type: Through-hole
Number of Outputs: 1
Maximum Output Current: 222mA
Input Voltage Range: 18V to 36V
Output Voltage: 9V
Efficiency: 81%
Voltage Isolation: 1 kV
Operating Temperature: -40°C to 85°C
Package: 8-SIP module, 7 leads
Product Status: Active
