Same model may have multiple batches, images only for reference.

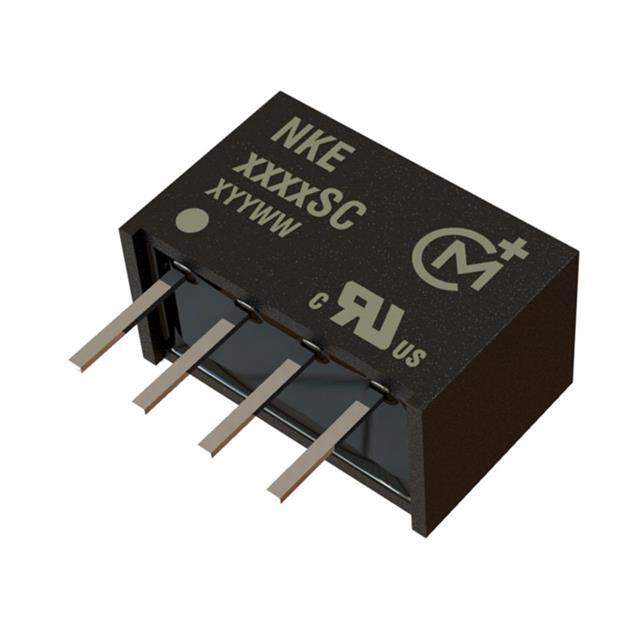

NKE0505SC Real Image
Same model may have multiple batches, images only for reference.

NKE0505SC

Part No NKE0505SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description Module DC-DC 5VIN 1-OUT 5V 0.2A 1W 4-Pin SIP Tube / CONV DC/DC 1W 5VIN 5VOUT SIP SGL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Murata Power Solutions Inc.
Standard Package 40
Category Power Supplies - Board Mount
Family DC DC Converters
Series NKE
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 3kV (3000V)
Applications ITE (Commercial)
Mounting Style Through Hole
Package 4-SIP Module
Size / Dimension 0.45" L x 0.24" W x 0.29" H (11.5mm x 6.0mm x 7.5mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 69%
Power (Watts) - Max 1W
Catalog NKE Series
Win Source Part Number 060435-NKE0505SC
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name NKE0505SC
Introduction Date February 29, 2008
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian NKE0505SC CAD Model

Description

The Murata Power Solutions Inc. NKE0505SC is a DC DC converter from the NKE series.

  • Manufacturer: Murata Power Solutions Inc.
  • Series: NKE series
  • Output Voltage: 5V
  • Maximum Output Current: 200mA
  • Efficiency: 69%
  • Power Rating: 1W
  • Mounting Style: Through-hole
  • Isolation Voltage: 3kV (3000V)
  • Application: ITE (Commercial)
  • Operating Temperature: -40°C to 85°C
  • Dimensions: 0.45" L x 0.24" W x 0.29" H (11.5mm x 6.0mm x 7.5mm)
  • Input Voltage: 4.5V and 5.5V
  • Commonly Used In: Power management
  • Estimated EOL Date: 2027
