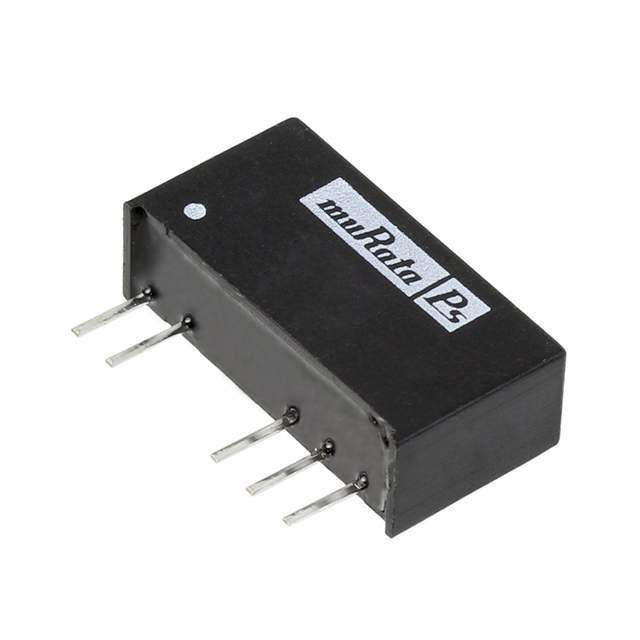

NMA0505SC Murata Power Solutions Inc.
Same model may have multiple batches, images only for reference.

NMA0505SC

Part No NMA0505SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 1W 5VIN 5VOUT SIP DL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Murata Power Solutions Inc.
Standard Package 25
Category Power Supplies - Board Mount
Family DC DC Converters
Series NMA
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA 100mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Mounting Style Through Hole
Package 7-SIP Module (5 Leads)
Size / Dimension 0.77" L x 0.24" W x 0.39" H (19.6mm x 6.1mm x 9.9mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 69%
Power (Watts) - Max 1W
Catalog NMA Series
Win Source Part Number 045288-NMA0505SC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NMA0505SC CAD Model

Description

The NMA series DC-DC converter is a high-performance power supply designed for ITE (Commercial) applications from Murata Power Solutions Inc.

  • Voltage Isolation: 1kV (1000V)
  • Outputs: 5V and -5V
  • Maximum Output Current: 100mA for each output
  • Power Output: 1W
  • Efficiency: 69%
  • Operating Temperature Range: -40°C to 85°C
  • Mounting Style: Through-hole
  • Package: 7-SIP module
  • Leads: 5
  • Size: 0.77" L x 0.24" W x 0.39" H (19.6mm x 6.1mm x 9.9mm)
  • Packaging: Tube
  • Standard Package: 25 units
  • Family: DC-DC converters
  • Application: Board-mount
