Same model may have multiple batches, images only for reference.

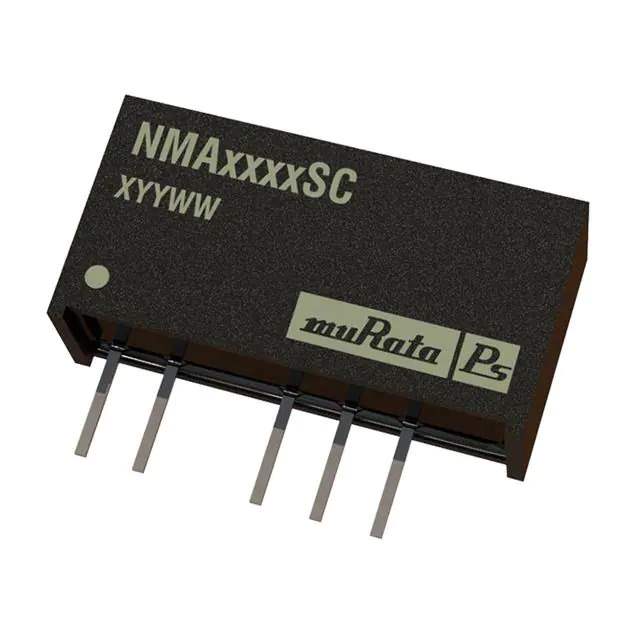

NMA0512SC Real Image
Same model may have multiple batches, images only for reference.

NMA0512SC

Part No NMA0512SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 1W / Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 4.5V - 5.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMA (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 42mA, 42mA
Power (Watts) 1 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 77%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.24" W x 0.39" H (19.6mm x 6.1mm x 9.9mm)
Base Product Number NMA05
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649108-NMA0512SC
Ultra Librarian 3D Model Ultra Librarian NMA0512SC CAD Model

Description

The NMA0512SC is a 1W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Series: NMA
  • Application: Power supplies in board mount applications
  • Size: 0.77" L x 0.24" W x 0.39" H (19.6mm x 6.1mm x 9.9mm)
  • Voltage Isolation: 1 kV
  • Number of Outputs: 2
  • Maximum Output Current: 42mA for each output
  • Input Voltage Range: 4.5V to 5.5V
  • Output Voltage: 12V and -12V
  • Efficiency: 77%
  • Package: 7-SIP module with 5 leads
  • Mounting: Through-hole
  • Operating Temperature: -40°C to 85°C
  • Compliance: REACH
  • HTSUS Code: 8504.40.9580
  • Application: ITE (Commercial)
