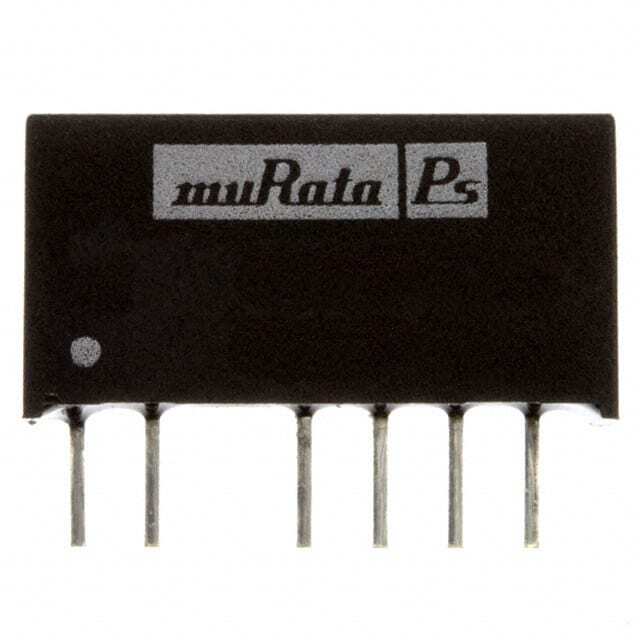

Same model may have multiple batches, images only for reference.

NMD120512SC

Name: NMD120512SC
Brand: Murata Power Solutions Inc.
SKU: 847118
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	NMD120512SC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 12V 1W
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	NMD (1W)
Package	Tube
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	5V
Voltage - Output 2	12V
Current - Output (Max)	100mA, 42mA
Power (Watts)	1 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Temperature Range - Operating	0°C ~ 70°C
Efficiency	80%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 6 Leads
Size / Dimension	0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Base Product Number	NMD12
Standard Package	25 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	847118-NMD120512SC
Ultra Librarian 3D Model	Ultra Librarian NMD120512SC CAD Model

Alternative Products

Description

The NMD120512SC is a DC-DC converter from Murata Power Solutions Inc.

Series: NMD (1W)
Power (Watts): 1W
Type: Isolated Module
Application: ITE (Commercial)
Number of Outputs: 2
Voltage - Output 1: 5V
Voltage - Output 2: 12V
Voltage - Isolation: 1kV
Size / Dimension: 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Mounting Type: Through Hole
Efficiency: 80%
Operating Temperature: 0°C ~ 70°C
Package / Case: 7-SIP Module
Number of Leads: 6
