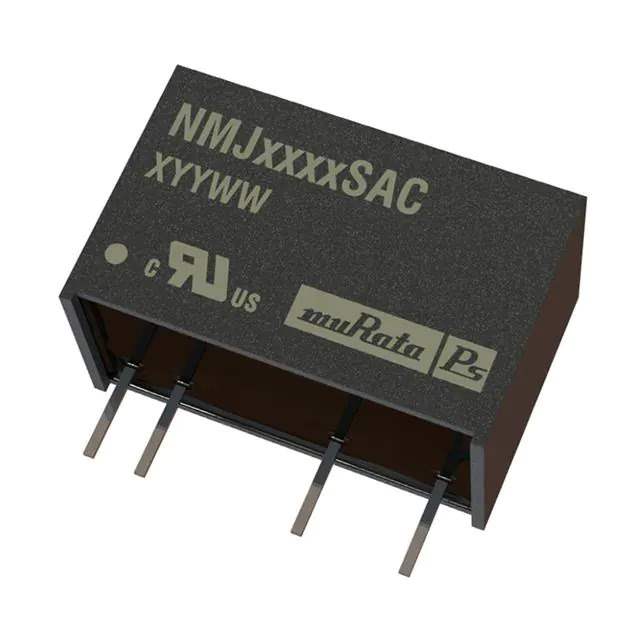

NMJ1212SAC Real Image
Same model may have multiple batches, images only for reference.

NMJ1212SAC

Part No NMJ1212SAC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMJ (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 12V
Current - Output (Max) 83mA
Power (Watts) 1 W
Voltage - Isolation 5.2 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 60°C
Efficiency 73%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.4mm)
Base Product Number NMJ12
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649172-NMJ1212SAC
Ultra Librarian 3D Model Ultra Librarian NMJ1212SAC CAD Model

Description

The NMJ1212SAC is a 1W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Series: NMJ
  • Application: Power Supplies, Board Mount
  • Voltage Isolation: 5.2 kV
  • Number of Outputs: 1
  • Output Voltage: 12V
  • Maximum Output Current: 83mA
  • Input Voltage: 10.8V to 13.2V
  • Size: 0.77" L x 0.39" W x 0.49" H
  • Application: ITE (Commercial)
  • Efficiency: 73%
  • Operating Temperature: -40°C to 60°C
  • Mounting Type: Through Hole
  • Package: 7-SIP module, 4 leads
  • Product Status: Active
  • Standard Package: 25 pcs
