Same model may have multiple batches, images only for reference.

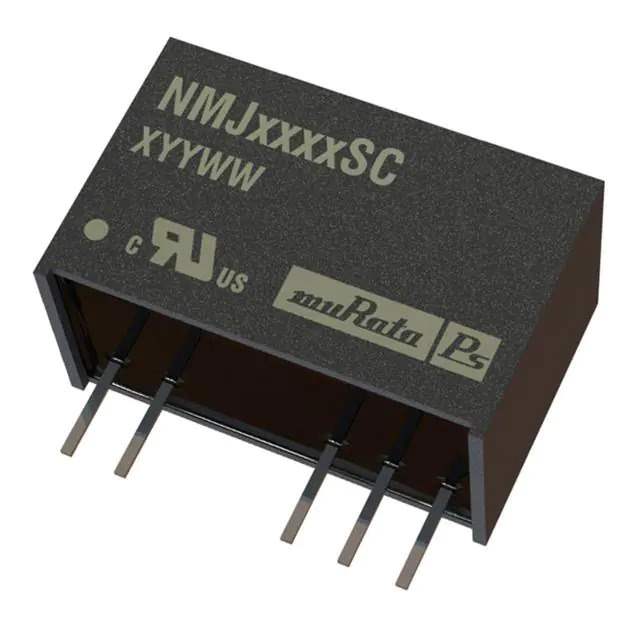

NMJ1212SC Real Image
Same model may have multiple batches, images only for reference.

NMJ1212SC

Part No NMJ1212SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMJ (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 42mA, 42mA
Power (Watts) 1 W
Voltage - Isolation 5.2 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 60°C
Efficiency 65%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.4mm)
Base Product Number NMJ12
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649173-NMJ1212SC
Ultra Librarian 3D Model Ultra Librarian NMJ1212SC CAD Model

Description

The NMJ1212SC is a power supply module designed for board mount applications. It belongs to the NMJ (1W) series and is an isolated module.

  • Series: NMJ (1W)
  • Isolation: Isolated Module
  • Package: Tube
  • Size: 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.4mm)
  • Application: ITE (Commercial)
  • Standard Package: 25 pieces
  • Power: 1 watt
  • Number of Outputs: 2
  • Maximum Output Current: 42mA (both outputs)
  • Input Voltage: 10.8V to 13.2V
  • Output Voltage 1: 12V
  • Output Voltage 2: -12V
  • Efficiency: 65%
  • Mounting: Through Hole
  • Package Type: 7-SIP module, 5 Leads
  • Operating Temperature: -40°C to 60°C
  • Manufacturer: Murata Power Solutions Inc.
  • Product Status: Active
