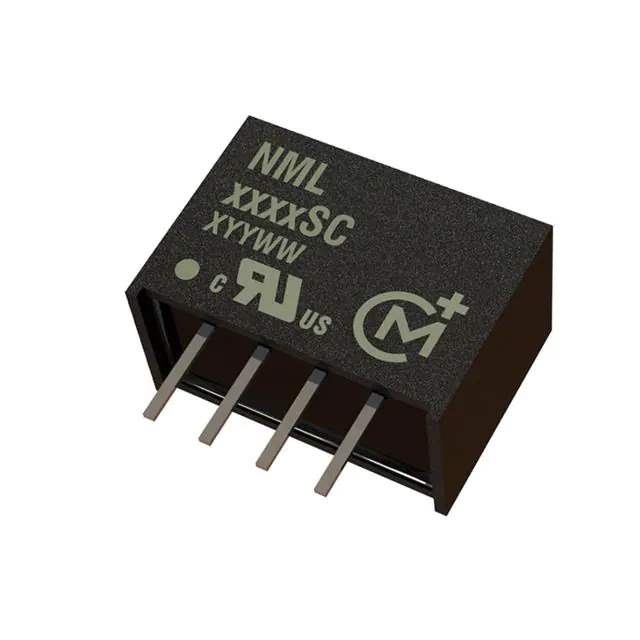

Same model may have multiple batches, images only for reference.

NML0515SC

Name: NML0515SC
Brand: Murata Power Solutions Inc.
SKU: 649188
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	NML0515SC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V 2W
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	NML (2W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	15V
Current - Output (Max)	133mA
Power (Watts)	2 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	83%
Mounting Type	Through Hole
Package / Case	4-SIP Module
Size / Dimension	0.55" L x 0.30" W x 0.39" H (14.0mm x 7.6mm x 9.9mm)
Base Product Number	NML05
Standard Package	35 pcs
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	649188-NML0515SC
Ultra Librarian 3D Model	Ultra Librarian NML0515SC CAD Model

Alternative Products

Description

The NML0515SC is a 2W isolated module DC-DC converter designed for power supply applications in commercial IT equipment.

Size: 0.55" L x 0.30" W x 0.39" H (14.0mm x 7.6mm x 9.9mm)
Mounting: Through hole
Voltage Isolation: 1 kV
Outputs: Single output
Maximum Output Current: 133mA
Input Voltage Range: 4.5V to 5.5V
Output Voltage: 15V
Efficiency: 83%
Operating Temperature: -40°C to 85°C
Manufacturer: Murata Power Solutions Inc.
Status: Active
