Same model may have multiple batches, images only for reference.

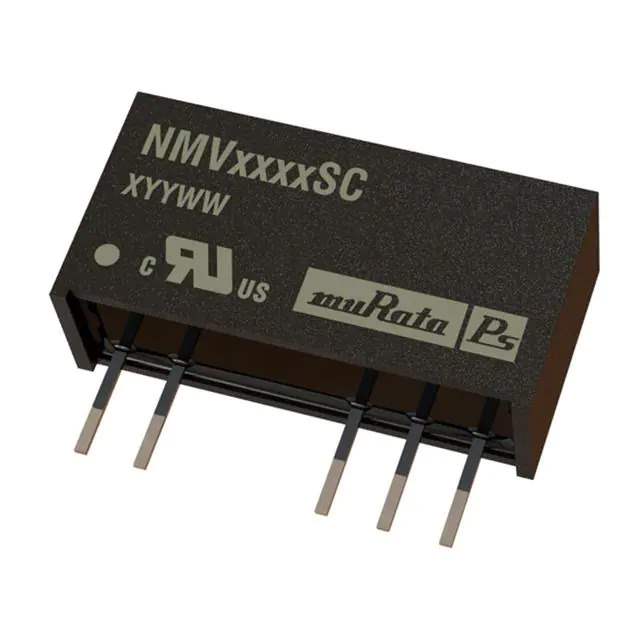

NMV0512SC Real Image
Same model may have multiple batches, images only for reference.

NMV0512SC

Part No NMV0512SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 1W / Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 4.5V - 5.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMV (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 42mA, 42mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 78%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Base Product Number NMV05
Standard Package 25 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649208-NMV0512SC
Ultra Librarian 3D Model Ultra Librarian NMV0512SC CAD Model

Description

The NMV0512SC is a 1W isolated module power supply from Murata Power Solutions Inc.

  • It belongs to the NMV series, designed for power supplies in board mount DC-DC converters.
  • Voltage Isolation: 3 kV
  • Output Voltages: 12V and -12V
  • Maximum Output Current: 42mA for both outputs
  • Input Voltage Range: 4.5V to 5.5V
  • Suitable for: ITE (Commercial) applications.
  • Compact Size: 0.77" L x 0.24" W x 0.39" H
  • Mounting Type: through hole
  • Efficiency: 78%
  • Operating Temperature Range: -40°C to 85°C
  • Package: 7-SIP module with 5 leads
  • Standard Package: 25 pcs.
  • With its reliable performance and compact design, the NMV0512SC is the perfect choice for your power supply needs.
