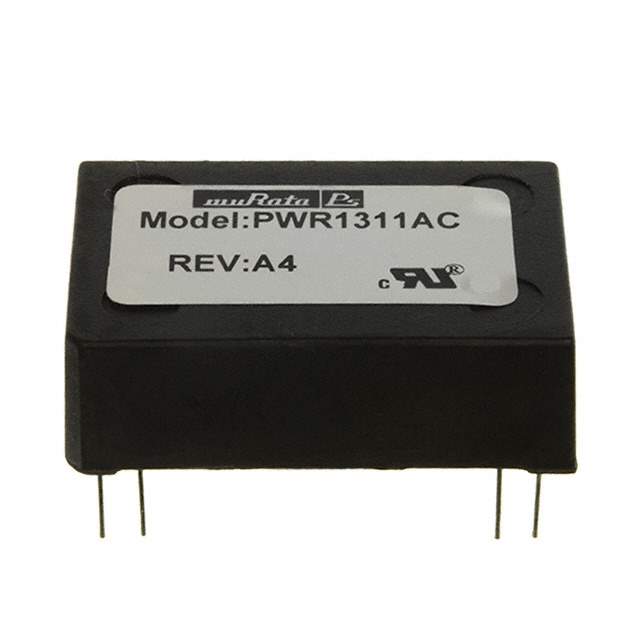

PWR1311AC Real Image
Same model may have multiple batches, images only for reference.

PWR1311AC

Part No PWR1311AC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC +/-15V +/-50MA DIP / Module DC-DC 12VIN 2-OUT 15V/-15V 0.05A/-0.05A 1.5W 9-Pin PDIP
Datasheet
PWR1311AC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series PWR13xxC
Packaging Tube
Type Isolated Module
Number of Outputs 2
Input Voltage MIN 10.8V
Voltage Input MAX 13.2V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Maximum) 50mA, 50mA
Power (Watts) 2W
Voltage - Isolation 4kV (4000V)
Applications ITE (Commercial)
Operating Temperature Range -55°C ~ 100°C
Efficiency 75%
Mounting Style Through Hole
Package 24-DIP Module, 9 Leads
Dimension 1.27" L x 0.81" W x 0.40" H (32.3mm x 20.5mm x 10.2mm)
Win Source Part Number 792750-PWR1311AC
Popularity Medium
Supply and Demand Status Limited
Family Name PWR1311
Introduction Date July 16, 2008
Country of Origin China, United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian PWR1311AC CAD Model

Description

The Murata Power Solutions Inc. PWR1311AC is an isolated module that is designed for use in ITE (Commercial) applications.

  • Application: ITE (Commercial)
  • Supply and Demand Status: Limited
