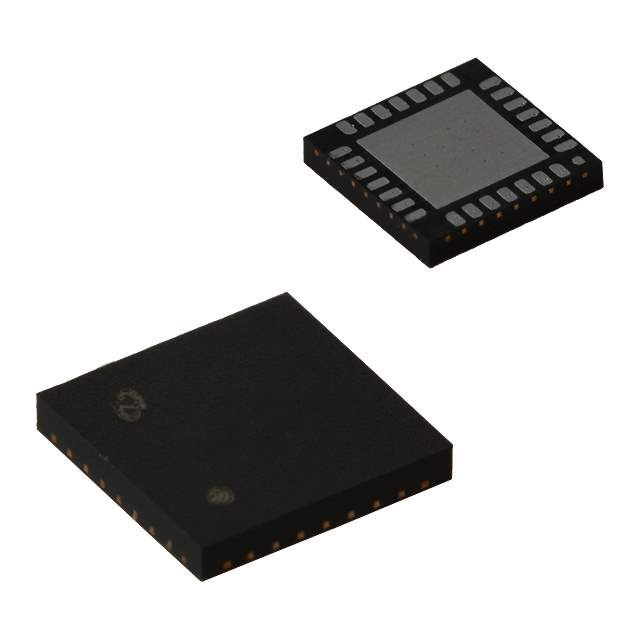

The LMX2542LQ is a high-performance frequency synthesizer manufactured by Texas Instruments (formerly National Semiconductor). It is designed to generate high-frequency signals with excellent phase noise performance. This makes it suitable for applications requiring precise and stable frequency sources.

Applications:

• Wireless Communication Systems: Used in cellular base stations, microwave radios, and satellite communication systems.
• Test and Measurement Equipment: Integrated into signal generators, spectrum analyzers, and other high-precision instruments.
• Clock Generation: Employed in high-speed data converters, network servers, and other applications requiring low-jitter clocks.
• Radar Systems: Used in radar transceivers and signal processing units.
• Medical Imaging: Integrated into MRI and other medical imaging equipment.

Features:

• Wide Frequency Range: Supports a broad range of output frequencies, typically spanning from hundreds of MHz to several GHz.
• Low Phase Noise: Delivers exceptionally low phase noise performance, ensuring signal integrity and stability.
• Integrated Voltage Controlled Oscillator (VCO): Includes an integrated VCO to simplify design and reduce external component count.
• Fractional-N Synthesizer: Uses a fractional-N architecture to achieve fine frequency resolution.
• Programmable Output Power: Allows adjustment of the output power level to optimize signal strength.
• Digital Lock Detect: Provides a digital lock detect output signal indicating when the synthesizer is locked to the desired frequency.
• SPI Interface: Configured and controlled via a standard SPI serial interface.
• Power-Down Mode: Supports a power-down mode to minimize power consumption when not in use.

Benefits:

• High Performance: Provides superior frequency synthesis performance for demanding applications.
• Simplified Design: The integrated VCO and fractional-N architecture simplify design and reduce component count.
• Flexibility: Offers a wide frequency range and programmable output power to meet diverse application requirements.
• Low Power Consumption: Supports a power-down mode to minimize energy consumption.
• Reliability: Designed for high reliability and stability in demanding environments.

Additional Details:

The LMX2542LQ typically requires an external reference clock for operation. Its fractional-N architecture allows for precise frequency control, and its integrated VCO eliminates the need for external VCO components, simplifying the design process. The specific frequency range and performance characteristics vary depending on the particular variant and operating conditions.
