Same model may have multiple batches, images only for reference.

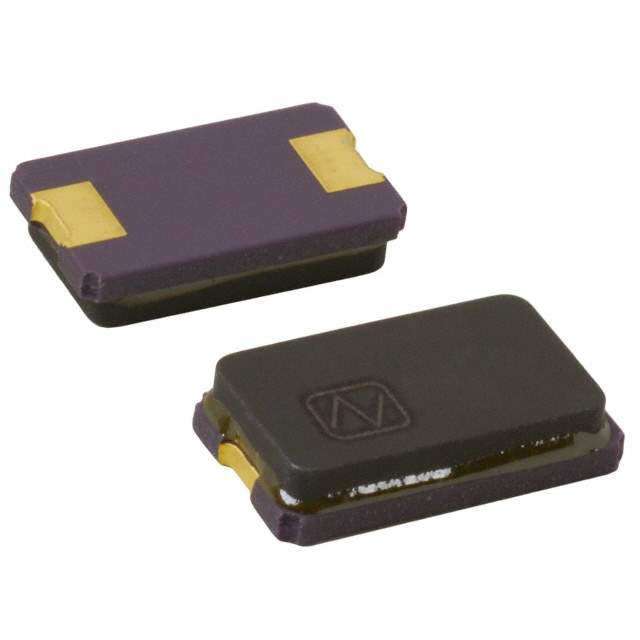

NX8045GB-7.3728MHZ-STD-CSF-3 Real Image
Same model may have multiple batches, images only for reference.

NX8045GB-7.3728MHZ-STD-CSF-3

Part No NX8045GB-7.3728MHZ-STD-CSF-3
Manufacturer NDK
Catalog Crystals
Description CRYSTAL 7.3728MHZ 8PF SMD / 7.3728 MHz ±20ppm Crystal 8pF 250 Ohms 2-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr NDK America, Inc.
Series NX8045GB
Package Tape & Reel
Product Status Not For New Designs
Type MHz Crystal
Frequency 7.3728 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 250 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.315" L x 0.177" W (8.00mm x 4.50mm)
Height - Seated (Max) 0.079" (2.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Other Names 50157452,NX8045GB73728MHZSTDCSF3,644-1204-6,644-1204-1,644-1204-2
Standard Package 1,000
Win Source Part Number 1083035-NX8045GB-7.3728MHZ-STD-CSF-3
Ultra Librarian 3D Model Ultra Librarian NX8045GB-7.3728MHZ-STD-CSF-3 CAD Model

Description

The NX8045GB-7.3728MHZ-STD-CSF-3 is an electronic component that belongs to the Crystals, Oscillators, Resonators category.

  • Type: MHz crystal
  • Frequency: 7.3728 MHz
  • Frequency Stability: ±30ppm
  • Supply and Demand Status: Not for new designs
  • Manufacturer: NDK America, Inc.
  • Win Source Part Number: 1083035-NX8045GB-7.3728MHZ-STD-CSF-3
  • Package: Tape and reel
  • Standard Package: 1,000
