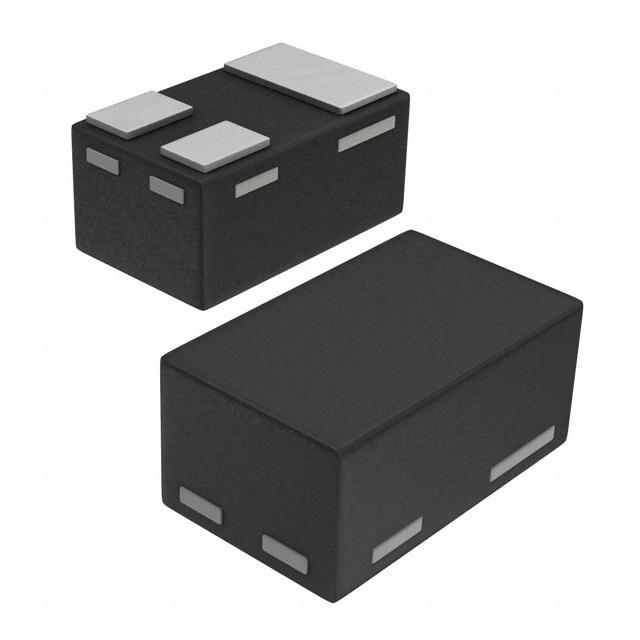

PMZ270XN,315 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PMZ270XN,315

Part No PMZ270XN,315
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 20V 2.15A SOT883
Datasheet
PMZ270XN,315 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 2.15A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 4.5V
Gate-Source Threshold Voltage 1.5V @ 250μA
Max Gate Charge 0.72nC @ 4.5V
Max Input Capacitance 34pF @ 20V
Maximum Gate-Source Voltage ±12V
Power Dissipation (Max) 2.5W (Tc)
Maximum Rds On at Id,Vgs 340 mOhm @ 200mA, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package DFN1006-3
Dimension SC-101, SOT-883
Win Source Part Number 1089817-PMZ270XN,315
Popularity Medium
Supply and Demand Status Balance
Quantity per package 10k pcs
Ultra Librarian 3D Model Ultra Librarian PMZ270XN,315 CAD Model

Description

The Nexperia USA Inc. MOSFET with part number 1089817-PMZ270XN,315 is a N-Channel polarity electronic component that is part of the Discrete Semiconductor Products category.

  • Manufacturer: Nexperia USA Inc.
  • Polarity: N-Channel
  • Power Dissipation: 2.5W (Tc)
  • Drain-Source Breakdown Voltage: 20V
  • Maximum Rds On @ Id,Vgs: 340 mOhm @ 200mA, 4.5V
  • Maximum Gate-Source Voltage: ±12V
  • Maximum Gate Charge: 0.72nC @ 4.5V
  • Maximum Input Capacitance: 34pF @ 20V
  • Gate-Source Threshold Voltage: 1.5V @ 250μA
  • Mounting: DFN1006-3
  • Dimension: SC-101, SOT-883
  • Drive Voltage (max Rds On, min Rds On): 2.5V, 4.5V
  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and Demand Status: Balance
  • Package Contains: 10k pcs
