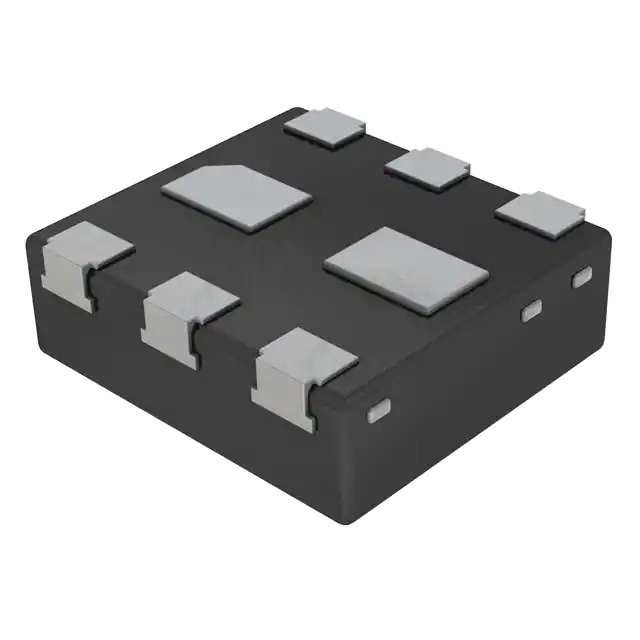

PQMD13Z Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PQMD13Z

Part No PQMD13Z
Manufacturer Nexperia USA Inc.
Catalog Transistors (BJT) - Arrays, Pre - Biased
Description TRANS PREBIAS 1NPN 1PNP 50V 6DFN
Datasheet
PQMD13Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Bipolar Transistor Arrays, Pre-Biased
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Transistor Type 1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max) 100mA
Voltage - Collector Emitter Breakdown (Max) 50V
Resistor - Base (R1) 4.7kOhms
Resistor - Emitter Base (R2) 47kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce 100 @ 10mA, 5V
Vce Saturation (Max) @ Ib, Ic 100mV @ 250µA, 5mA
Current - Collector Cutoff (Max) 1µA
Frequency - Transition 230MHz, 180MHz
Power - Max 350mW
Mounting Type Surface Mount
Package / Case 6-XFDFN Exposed Pad
Supplier Device Package DFN1010B-6
Base Product Number PQMD13
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.21.0075
Win Source Part Number 1376944-PQMD13Z
Ultra Librarian 3D Model Ultra Librarian PQMD13Z CAD Model

Description

The 1376944-PQMD13Z is a dual bipolar transistor array from Nexperia's PQMD13 series.

  • Type: Pre-biased Transistor Array
  • Transistor Configuration: One NPN and one PNP
  • Mounting Type: Surface Mount
  • Package: 6-XFDFN Exposed Pad
  • Supplier Device Package: DFN1010B-6
  • Maximum Collector Current: 100 mA
  • Collector-Emitter Breakdown Voltage: 50V
  • Built-in Resistors: Yes
  • Base Resistor (R1): 4.7 kOhms
  • Emitter-Base Resistor (R2): 47 kOhms
  • DC Current Gain (hFE): 100 @ 10 mA and 5V
  • Vce Saturation: 100 mV @ 250 μA and 5 mA
  • Transition Frequency: 230 MHz and 180 MHz
