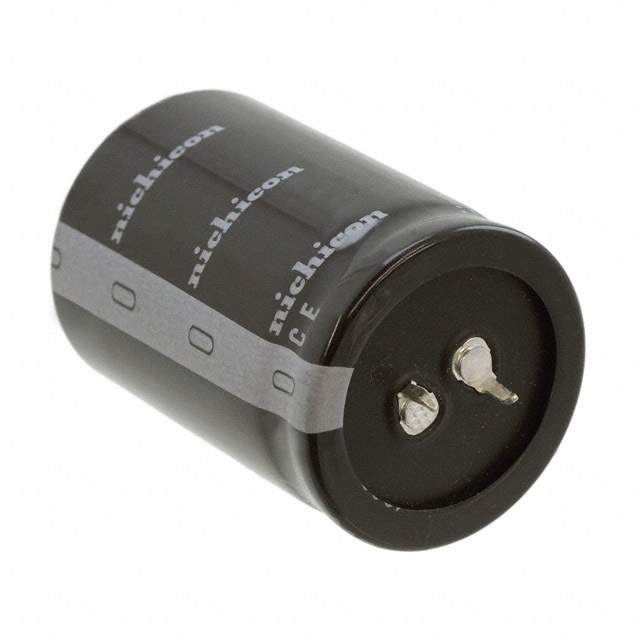

Same model may have multiple batches, images only for reference.

LGN2W561MELC50

Name: LGN2W561MELC50
Brand: Nichicon
SKU: 1340076
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	LGN2W561MELC50
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 560UF 20% 450V SNAP / 560 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Datasheet	LGN2W561MELC50 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	LGN
Package	Bulk
Capacitance	560 µF
Tolerance	±20%
Voltage - Rated	450 V
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-25°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	1.99 A @ 120 Hz
Ripple Current @ High Frequency	2.8457 A @ 50 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	2.047" (52.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Standard Package	200
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1340076-LGN2W561MELC50
Ultra Librarian 3D Model	Ultra Librarian LGN2W561MELC50 CAD Model

Alternative Products

Description

The Nichicon LGN2W561MELC50 is an aluminum electrolytic capacitor that is designed for general-purpose applications.

Manufacturer: Nichicon
Product Name: LGN2W561MELC50
Type: Aluminum Electrolytic Capacitor
Application: General Purpose
Capacitance: 560 µF
Voltage: 450V
Tolerance: ±20%
Ripple Current (120Hz): 1.99A
Ripple Current (50kHz): 2.8457A
Packaging: Bulk
Standard Package: 200 units
Size/Dimension: 1.378" diameter (35.00mm) x 2.047" height (52.00mm)
Package/Case: Radial, Can-Snap-In
Temperature Range: -25°C to 105°C
