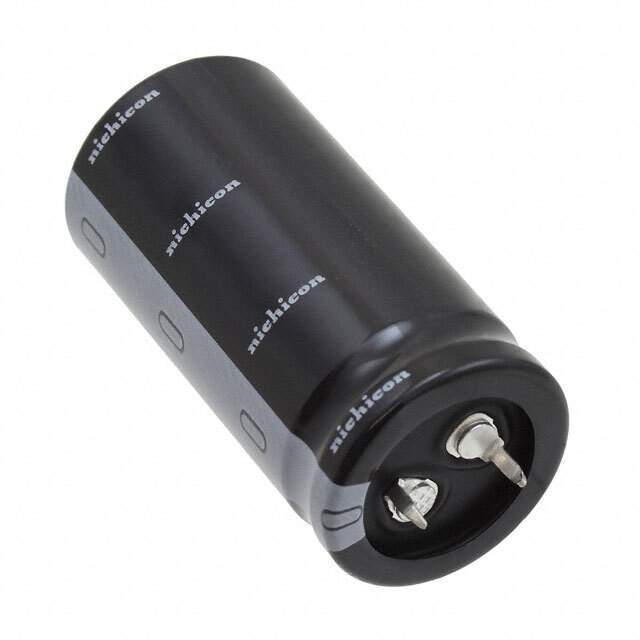

LGW2D122MELA50 Real Image
Same model may have multiple batches, images only for reference.

LGW2D122MELA50

Part No LGW2D122MELA50
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 1200UF 20% 200V SNAP / 1200 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Datasheet
LGW2D122MELA50 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LGW
Package Bulk
Capacitance 1200 µF
Tolerance ±20%
Voltage - Rated 200 V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 3.98 A @ 120 Hz
Ripple Current @ High Frequency 5.97 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.984" Dia (25.00mm)
Height - Seated (Max) 1.969" (50.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 250
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1340485-LGW2D122MELA50
Ultra Librarian 3D Model Ultra Librarian LGW2D122MELA50 CAD Model

Description

The Nichicon LGW2D122MELA50 is a capacitor with a capacitance of 1200 µF and a voltage rating of 200 V. Nichicon.

  • Capacitance: 1200 µF
  • Voltage Rating: 200 V
  • Tolerance: ±20%
  • ECCN: EAR99
  • HTSUS: 8532.22.0040
  • Ripple Current @ Low Frequency: 3.98 A @ 120 Hz
  • Ripple Current @ High Frequency: 5.97 A @ 50 kHz
