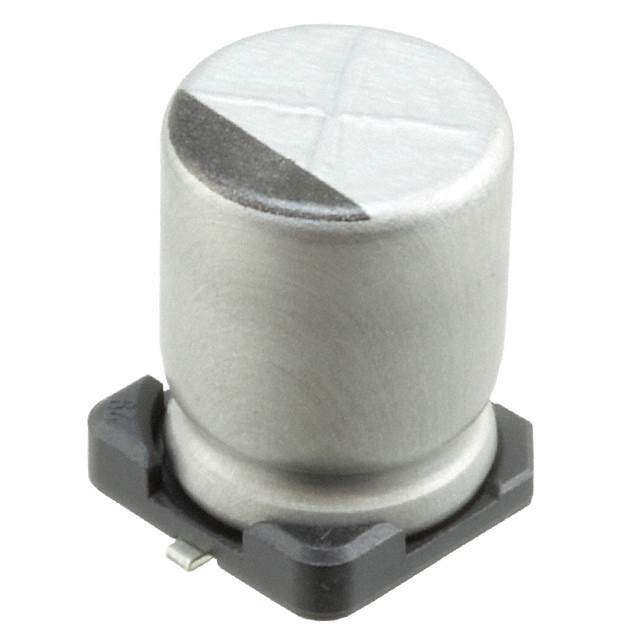

Same model may have multiple batches, images only for reference.

UCD0J681MNL1GS

Name: UCD0J681MNL1GS
Brand: Nichicon
SKU: 1339511
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	UCD0J681MNL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 680UF 20% 6.3V SMD / 680 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Datasheet	UCD0J681MNL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCD
Package	Tape & Reel
Capacitance	680 µF
Tolerance	±20%
Voltage - Rated	6.3 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	300 mA @ 120 Hz
Ripple Current @ High Frequency	600 mA @ 100 kHz
Impedance	160 mOhms
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1339511-UCD0J681MNL1GS
Ultra Librarian 3D Model	Ultra Librarian UCD0J681MNL1GS CAD Model

Alternative Products

Description

The UCD0J681MNL1GS is an aluminum electrolytic capacitor manufactured by Nichicon.

Application: automotive
Capacitance: 680 µF
Tolerance: ±20%
Voltage Rating: 6.3 V
Ripple Current @ 120 Hz: 300 mA
Ripple Current @ 100 kHz: 600 mA
