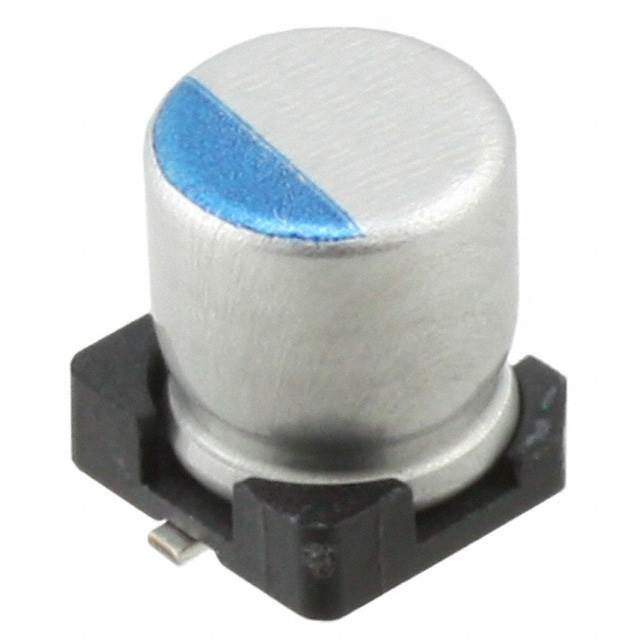

Same model may have multiple batches, images only for reference.

UCL1A102MNL1GS

Name: UCL1A102MNL1GS
Brand: Nichicon
SKU: 1339961
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	UCL1A102MNL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1000UF 20% 10V SMD / 1000 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet	UCL1A102MNL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCL
Package	Tape & Reel
Capacitance	1000 µF
Tolerance	±20%
Voltage - Rated	10 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	595 mA @ 120 Hz
Ripple Current @ High Frequency	1.19 A @ 100 kHz
Impedance	60 mOhms
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.394" (10.00mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1339961-UCL1A102MNL1GS
Ultra Librarian 3D Model	Ultra Librarian UCL1A102MNL1GS CAD Model

Alternative Products

Description

The UCL1A102MNL1GS is an aluminum electrolytic capacitor with a capacitance of 1000 µF and a voltage rating of 10 V.

Capacitance: 1000 µF
Voltage Rating: 10 V
Tolerance: ±20%
Impedance: 60 mOhms
Polarized: Yes
Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
Series: UCL
Designed for: General-purpose applications
Standard Package: 500
Lifetime: 2000 hrs @ 105°C
Package/Case: Radial, can - SMD
Operating Temperature: -55°C ~ 105°C
Manufacturer: Nichicon
Ripple Current: 595 mA @ 120 Hz and 1.19 A @ 100 kHz
