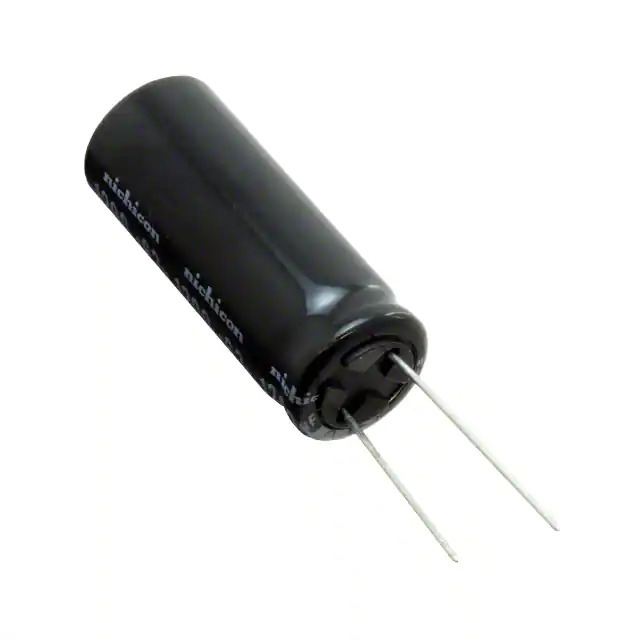

Same model may have multiple batches, images only for reference.
UHE2A681MHD Nichicon
Same model may have multiple batches, images only for reference.

UHE2A681MHD

Part No UHE2A681MHD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 680UF 20% 100V RADIAL / 680 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Datasheet
UHE2A681MHD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UHE
Package Bulk
Product Status Not For New Designs
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.418 A @ 120 Hz
Ripple Current @ High Frequency 1.89 A @ 100 kHz
Impedance 40 mOhms
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 1.398" (35.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357678-UHE2A681MHD
Ultra Librarian 3D Model Ultra Librarian UHE2A681MHD CAD Model

Description

The UHE2A681MHD is an aluminum electrolytic capacitor manufactured by Nichicon.

  • Series: UHE
  • Capacitance: 680 µF
  • Voltage Rating: 100 V
  • Application: General-Purpose
  • Temperature Range: -40°C to 105°C
  • Ripple Current (Low Frequency): 1.418 A @ 120 Hz
  • Ripple Current (High Frequency): 1.89 A @ 100 kHz
  • Package: Radial, Can
  • Mounting Type: Through-Hole
  • Lead Spacing: 0.295" (7.50mm)
  • Size/Dimension: 0.709" Dia (18.00mm)
  • Lifetime: 10000 hours @ 105°C
  • REACH Status: Not affected
  • ECCN: EAR99
  • Polarization: Polarized
  • Impedance: 40 mOhms
