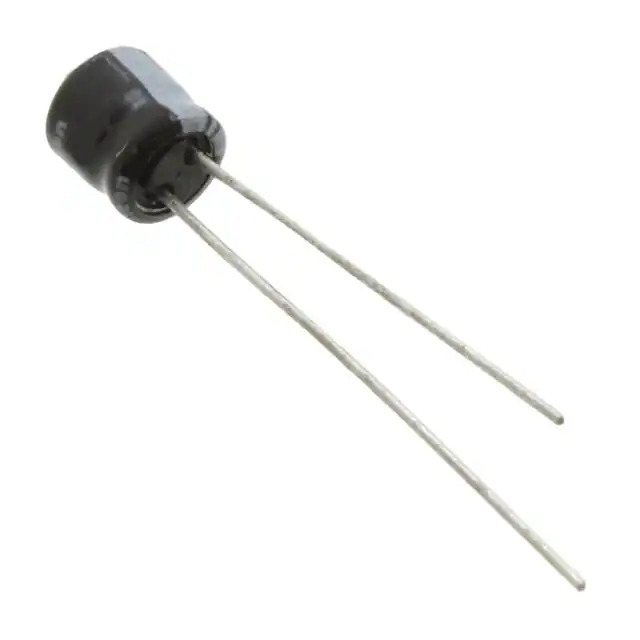

Same model may have multiple batches, images only for reference.
UMA1A220MDD1TP Nichicon
Same model may have multiple batches, images only for reference.

UMA1A220MDD1TP

Part No UMA1A220MDD1TP
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 10V RADIAL / 22 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UMA
Product Status Obsolete
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 33 mA @ 120 Hz
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.236" (6.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1355628-UMA1A220MDD1TP
Ultra Librarian 3D Model Ultra Librarian UMA1A220MDD1TP CAD Model

Description

The 1355628-UMA1A220MDD1TP is a radial aluminum electrolytic capacitor from Nichicon's UMA series.

  • Capacitance: 22 µF
  • Voltage Rating: 10 V
  • Application: General Purpose
  • Temperature Range: -40°C to 85°C
  • Tolerance: ±20%
  • Lead Spacing: 0.098" (2.50mm)
  • Size (Diameter): 0.197" (5.00mm)
  • Seated Height: 0.236" (6.00mm)
  • Lifetime: 2000 hours @ 85°C
  • Product Status: Obsolete
