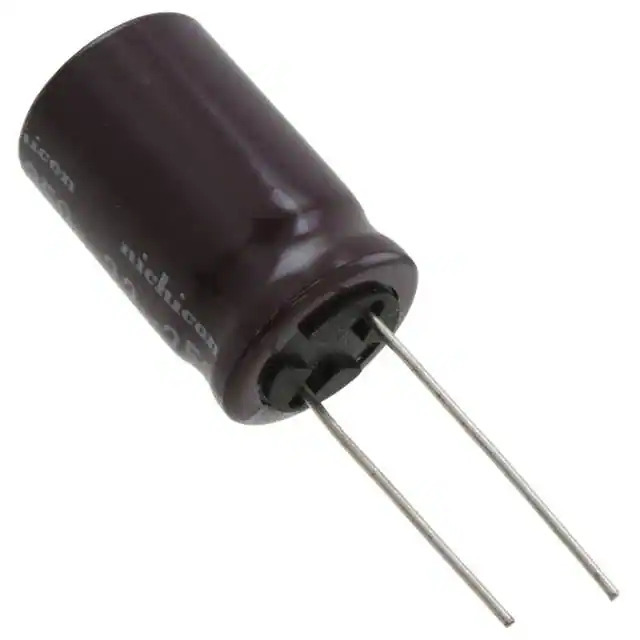

UPJ1V122MHD6 Nichicon
Same model may have multiple batches, images only for reference.

UPJ1V122MHD6

Part No UPJ1V122MHD6
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 1200UF 20% 35V RADIAL / 1200 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet
UPJ1V122MHD6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPJ
Package Bulk
Product Status Not For New Designs
Capacitance 1200 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.74 A @ 120 Hz
Ripple Current @ High Frequency 1.98 A @ 10 kHz
Impedance 41 mOhms
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.043" (26.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358270-UPJ1V122MHD6
Ultra Librarian 3D Model Ultra Librarian UPJ1V122MHD6 CAD Model

Description

The 1358270-UPJ1V122MHD6 is an aluminum electrolytic capacitor from Nichicon's UPJ series, manufactured by Nichicon.

  • Capacitance: 1200 µF
  • Voltage Rating: 35 V
  • Tolerance: ±20%
  • Polarization: Polarized
  • Ripple Current (Low Frequency): 1.74 A @ 120 Hz
  • Ripple Current (High Frequency): 1.98 A @ 10 kHz
  • Lead Spacing: 7.50mm
  • Size: 16.00mm Dia
  • Mounting Type: Through Hole
  • Height (Seated): 26.50mm
  • Lifetime: 5000 Hrs @ 105°C
  • Package: Radial, Can
  • Status: Not For New Designs
  • REACH: Unaffected
